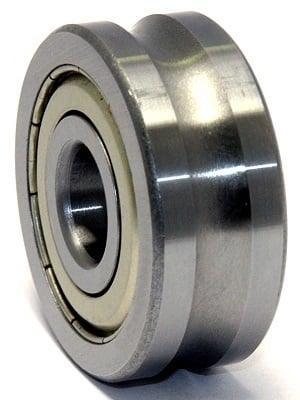

LFR5201KDD 12mm ID x 10mm U-Groove Track Roller Bearing LFR5201-10KDD

LFR5201-10KDD U-Groove Guide Bearing
✔️ 12mm ID Track Roller - 10mm U Profile Fit

The LFR5201-10KDD is a precision U-groove guide bearing designed to ride along round rails or V-tracks for smooth linear motion. With a 12mm inner diameter and compact profile, it's ideal for CNC systems, sliding mechanisms, and motion guides that require accurate tracking and durability.

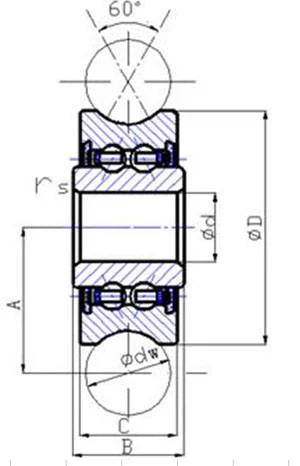

✅ Inner diameter: 12mm
✅ Shaft diameter fit (dw): 10mm
✅ Outer diameter: 35mm
✅ Groove depth (C): 15.9mm
✅ Total width (B): 15.9mm
✅ Outer flange width (A): 20.65mm
✅ Radius (rs): 0.3mm
✅ Type: U-groove track roller bearing
✅ Load rating (Cw): 8.5 kN
✅ Load rating (Cow): 5.1 kN
✅ Quantity: 1 bearing

💡 Why use U-groove track roller bearings in linear motion systems?
They provide consistent tracking and load handling while reducing friction and misalignment.
- U-groove profile fits round rails or curved edges with precision
- Handles both radial and thrust loads in guided tracks
- Ideal for CNC, 3D printers, and automated conveyors
- Shielded to protect from dust and reduce maintenance

Roll smooth, stay aligned, and keep motion tight - this bearing is built to guide with precision. Order now and keep your system on track!
