LME40OP 40mm Open Ball Bushing 40x62x80 Linear Motion Bearing
UPC: 00193019214701
Type: Linear Motion Ball Bushing
Number of Ball Circuit: 6
Size: 40mm x 62mm x 80mm
Inner Diameter: 40mm

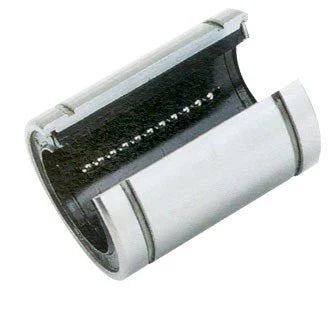

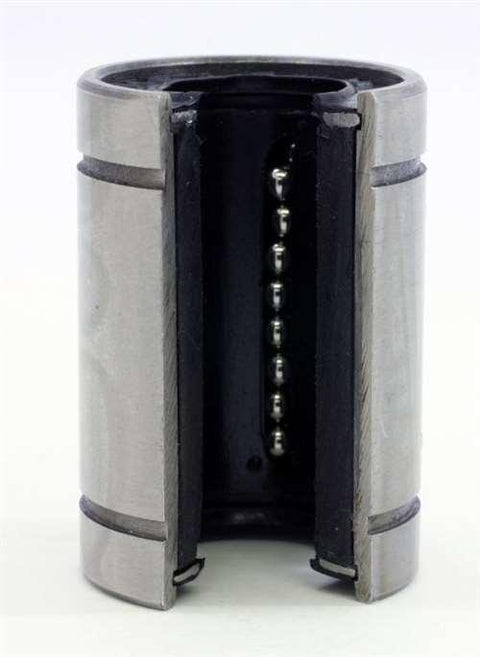

LME40OP Linear Ball Bushing
✔️ Open Type - Fits 40mm Shafts
The LME40OP is an open-type linear motion ball bushing designed for use with supported 40mm shafts. With six ball circuits for smooth travel and a sturdy steel body, it’s ideal for CNC machines, linear guides, or automation projects needing open access along the shaft.
✅ Fits 40mm shafts
✅ Open type for use with supported shafts
✅ Six internal ball circuits for stable motion
✅ Dynamic load rating: 2,160 N
✅ Static load rating: 4,020 N
✅ Size: 40mm ID x 62mm OD x 80mm length
✅ Quantity: One bearing
Dimension Table (mm & inch):
| Inner Diameter | Outer Diameter | Length | Cr (N) | Cor (N) |
|---|---|---|---|---|
| 40mm (1-37/64" inch) | 62mm | 80mm | 2,160 | 4,020 |
💡 What are open linear ball bushings used for in supported shaft systems?
They allow smooth motion while riding on a rail or shaft support.
-
Open style hugs the shaft from the top and bottom
-
Great for CNC router tables and gantry rails
-
Six ball circuits reduce friction and wear
-
Easy to install in slide blocks and bearing housings
If your motion system needs reliable travel over supported shafts, this bearing’s the one-grab it now and get things moving clean and smooth.
