VXB

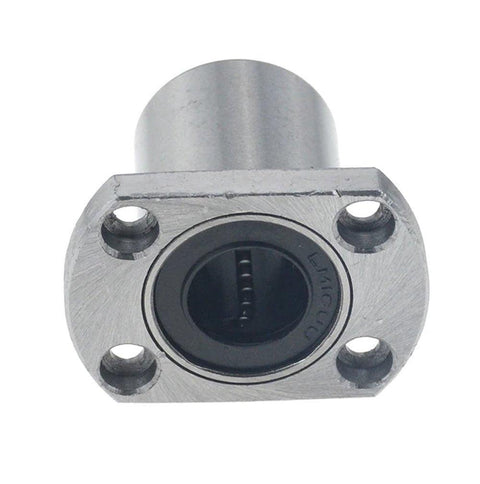

LMH16UU 16mm Flanged Ball Bushing CNC Linear Motion Bearing 16x28x37mm
$28.54 CAD
$38.52 CADyou save $9.98 CAD
SKU: LMH16UU
UPC: 00193019295069
UPC: 00193019295069
Item: LMH16UU Ball Bushing
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 16mm
Outer Diameter: 28mm
Length: 37mm
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 16mm
Outer Diameter: 28mm
Length: 37mm

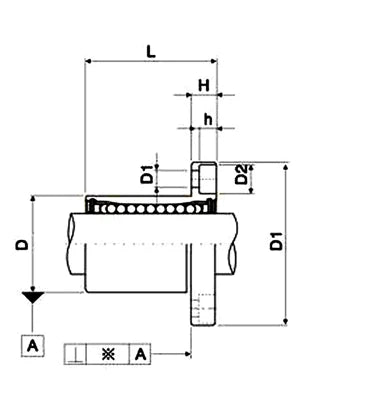

| LMH16UU Flanged Linear Motion Ball Bushing 16x28x37 |
| Number of Rolls | dr | D | L | D1 | W | H | A | F | d1 | d2 | h |
| 5 | 16 | 28 | 37 | 48 | 34 | 6 | 31 | 22 | 4.5 | 7.5 | 4.1 |
LMH16UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 16mm, outer diameter is 28mm, and length is 37mm.
|
