LMH25UU 25mm Flanged Ball Bushing CNC Linear Motion Bearing 25x40x59mm
UPC: 00193019295083
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 25mm
Outer Diameter: 40mm
Length: 59mm

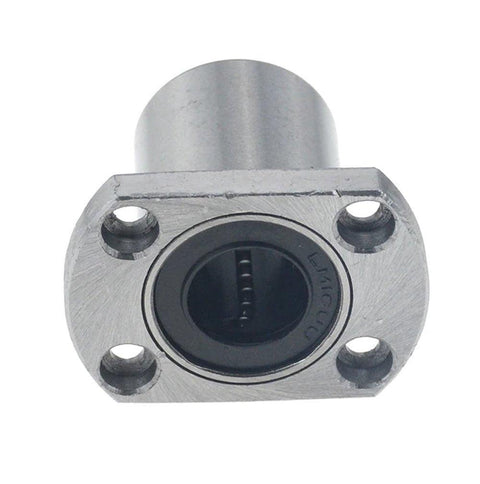

LMH25UU Flanged Linear Ball Bushing
✔️ Square Flange Type - 25mm x 40mm x 59mm
The LMH25UU is a square flanged linear motion ball bushing designed for precise, low-friction sliding movement. It’s perfect for CNC machines, 3D printers, and guided automation setups requiring compact flange mounting.
✅ Bore size: 25mm
✅ Outer diameter: 40mm
✅ Overall length: 59mm
✅ Flange type: Square
✅ Dynamic load rating: 980 N
✅ Static load rating: 1569 N
✅ Quantity: 1 bearing
Housing Dimensions (mm):
| Feature | Size |
|---|---|
| D1 | 62 |
| W | 46 |
| H | 8 |
| A | 40 |
| F | 32 |
| d1 | 5.5 |
| d2 | 9 |
| h | 5.1 |
💡 What is a flanged linear bushing used for in motion systems?
It supports linear shafts and keeps alignment accurate in guided movement applications.
Great for 3D printers, automation equipment, and motion rails
✅ Square flange offers easy and stable mounting
✅ Ball bearing design ensures smooth travel and low friction
✅ Ideal for high-precision repetitive sliding motion
Built to glide and made to last - drop this bushing into your setup and let things move smoothly. Get yours today!
