VXB

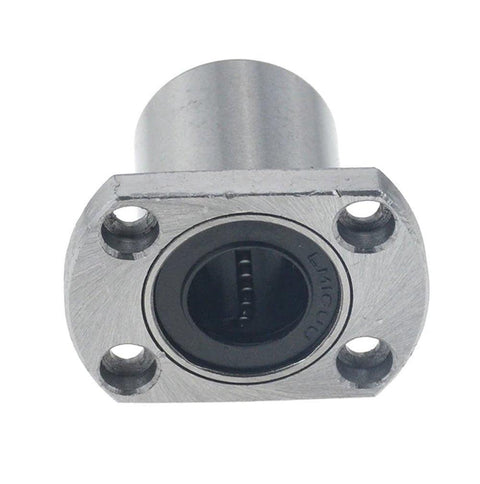

LMH30UU 30mm Flanged Ball Bushing CNC Linear Motion Bearing 30x45x64mm
$32.08 CAD
$43.30 CADyou save $11.22 CAD
SKU: LMH30UU
UPC: 00193019295090
UPC: 00193019295090
Item: LMH30UU 30mm Flanged Ball Bushing CNC Linear Motion 30x45x64mm
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 30mm
Outer Diameter: 45mm
Length: 64mm
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 30mm
Outer Diameter: 45mm
Length: 64mm

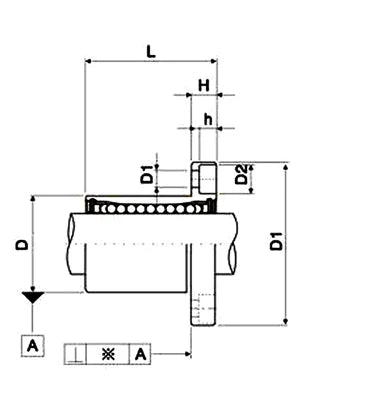

| LMH30UU Flanged Linear Motion Ball Bushing 30x45x64 |
| Number of Rolls | dr | D | L | D1 | W | H | A | F | d1 | d2 | h |
| 6 | 30 | 45 | 64 | 74 | 51 | 10 | 49 | 35 | 6.6 | 11 | 6.1 |
LMH30UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 30mm, outer diameter is 45mm, and length is 64mm.
|
