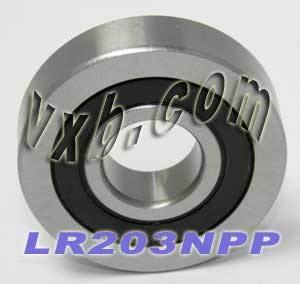

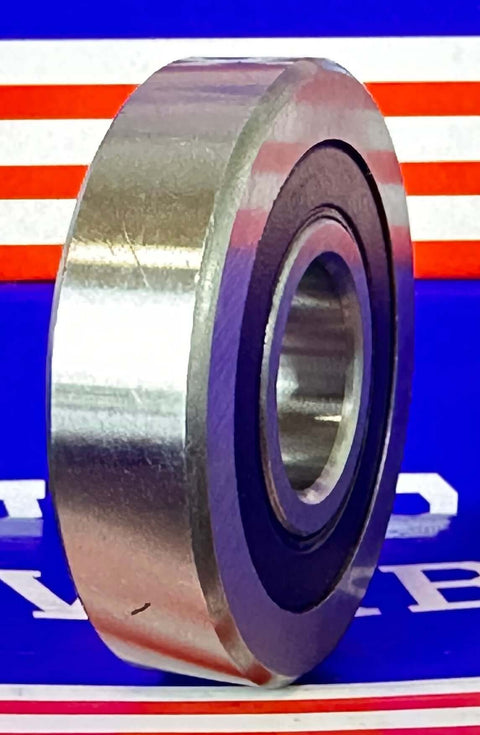

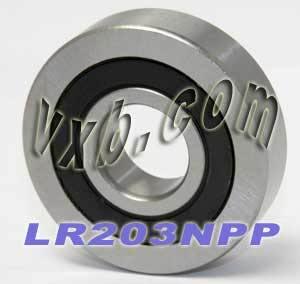

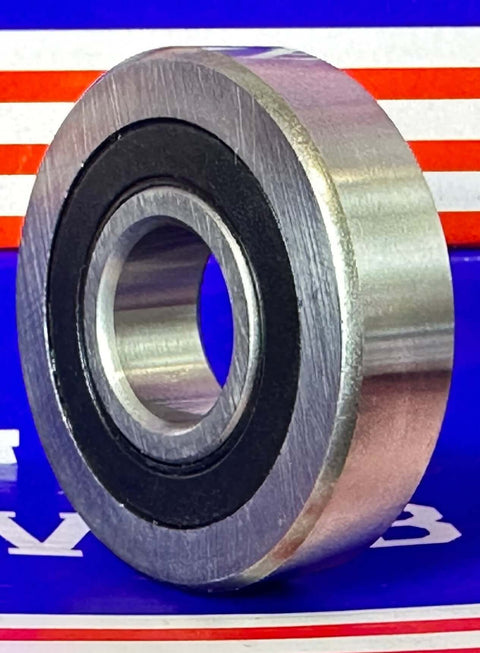

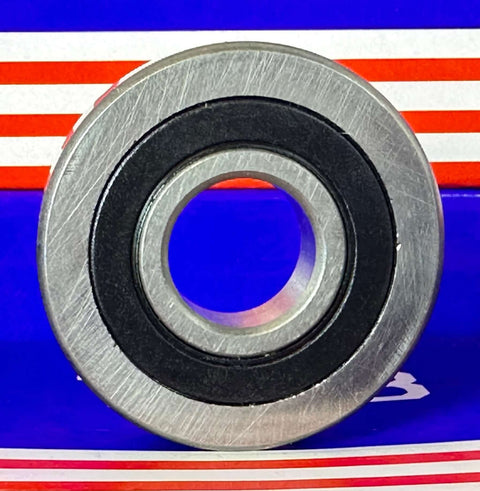

LR203NPP Track Roller Bearing 17x47x12mm - Cam Follower

LR203NPP Track Roller Ball Bearing
✔️ Single Row - Sealed - 17mm x 47mm x 12mm

The LR203NPP is a sealed track roller bearing built to guide or support motion in cam systems, conveyors, and linear tracks. With a strong single-row design and built-in seals, it keeps out contaminants while handling both radial and axial loads. This listing is for one bearing.

✅ Bearing type: Track roller single row ball bearing
✅ Model: LR203NPP
✅ Inner diameter (d): 17mm
✅ Outer diameter (D): 47mm
✅ Width (B): 12mm
✅ Width across roller (C): 12mm
✅ Fillet radius (Rs): 0.6mm
✅ Load rating (Cw): 8,400 N
✅ Load rating (Cow): 4,400 N
✅ Closures: Sealed
✅ Quantity: 1 bearing

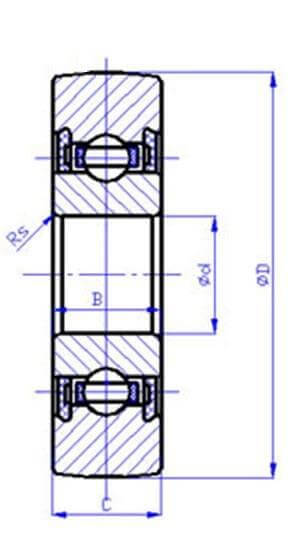

Dimensions Table (mm):

💡 What makes track roller bearings ideal for guide systems?
Track roller bearings are designed to ride along rails or cam profiles while carrying both radial and axial loads. Their rugged construction and sealed design ensure long-lasting performance in motion systems where guidance and alignment are critical.

Get smooth tracking and solid support - drop this bearing into your guide system and roll with confidence!
