LR5201NPPU Track Roller 2-Row Bearing 12x35x15.9 Track Bearing

LR5201NPPU Track Roller Bearing
✔️ Double Row Sealed Ball Bearing 12mm x 35mm x 15.9mm

The LR5201NPPU is a sealed double-row track roller bearing designed for stable load handling and smooth rolling in guiding systems. With a 12mm bore, 35mm outer diameter, and 15.9mm width, it’s built to perform under both radial and axial forces. Pack includes 1 bearing.

✅ Model: LR5201NPPU
✅ Type: Double-row track roller ball bearing
✅ Bore (ID): 12mm
✅ Outer Diameter (OD): 35mm
✅ Width: 15.9mm
✅ Load Rating (Cw): 8,600 N
✅ Load Rating (Cow): 5,100 N
✅ Max Speed: 7,500 RPM
✅ Closures: Sealed
✅ Quantity: 1 Bearing

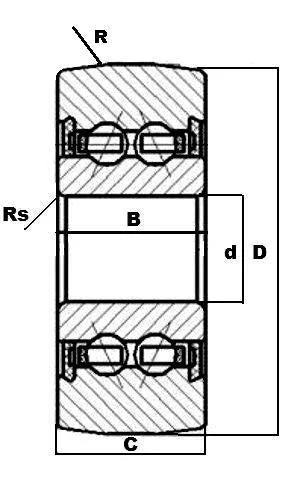

Dimensions (Metric)

💡 Why use double-row track roller bearings?
Double-row designs provide strength and durability in guiding and track systems.

• Handle both radial and thrust loads efficiently

• Sealed design keeps grease in and dirt out

• Perfect for linear guides, conveyors, and cam follower setups

A reliable, heavy-duty bearing that keeps your track systems moving—pick up the LR5201NPPU today and keep your machines running strong.
