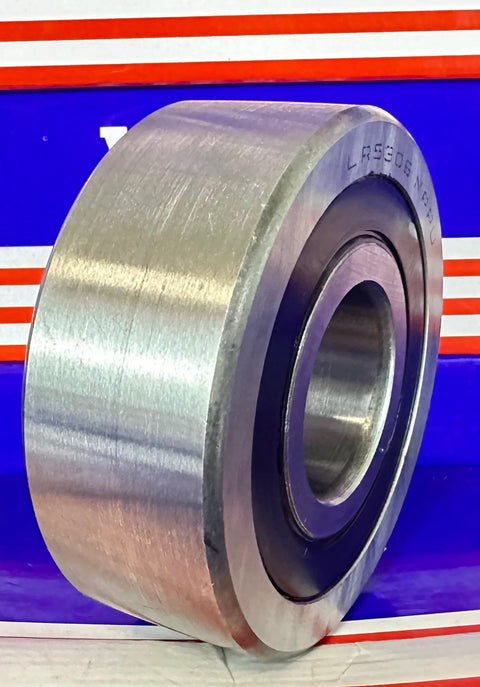

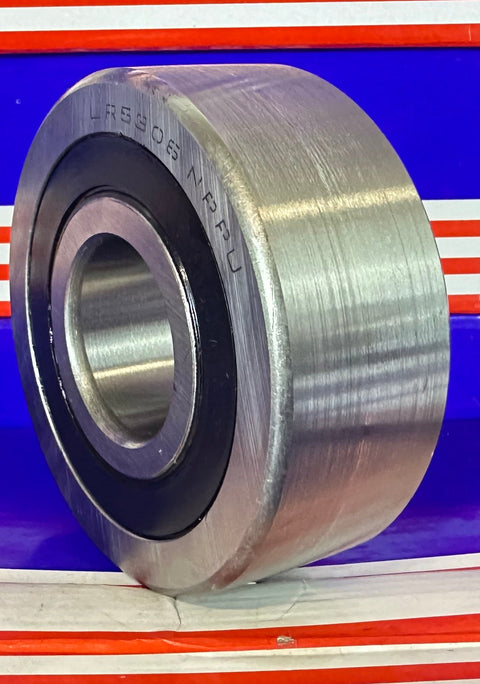

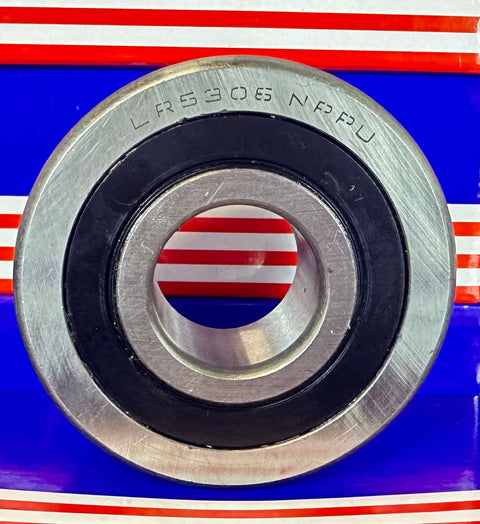

LR5306NPPU Track Roller Bearing 2-Row 30x80x30.2mm

LR5306NPPU Track Roller Bearing - Double Row Design
✔️ 30mm x 80mm x 30.2mm - Sealed & Built for Heavy Loads

The LR5306NPPU is a double row track roller bearing designed for guided linear motion and high-load conditions. Sealed on both sides for durability, it handles radial and axial forces efficiently and is perfect for cam drives, rail systems, and material handling equipment.

✅ Size: 30mm x 80mm x 30.2mm
✅ Inner diameter: 30mm
✅ Outer diameter: 80mm
✅ Width: 30.2mm
✅ Type: Double row track roller bearing
✅ Closures: Sealed
✅ Load rating CW (radial): 35,500 N
✅ Load rating COW (axial): 25,500 N
✅ Max speed: 3,100 RPM
✅ Quantity: 1 bearing

💡 Why choose a double row track roller bearing for linear motion systems?
Double row track rollers provide greater load distribution, stability, and life expectancy under heavy-duty motion. They’re ideal for cam followers and rails that experience side loads and misalignment, delivering smooth and reliable tracking over time.

Built tough and ready to roll - grab one now and keep your system gliding like it should!
