WA8-24PD NB Stainless Steel Shaft 24 inch Length Linear Motion
$153.68 CAD
SKU: WA8-24PD-NB
UPC: 00193019133842
UPC: 00193019133842
NB NB Shaft Support Rail
Shaft Diameter: 1/2" inch
Length: 24" Inch
Material: Aluminum Alloy
Shaft Diameter: 1/2" inch
Length: 24" Inch
Material: Aluminum Alloy

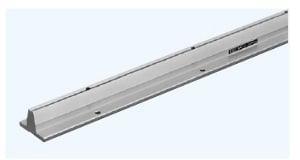

| WA8-24PD NB Shaft Support Rail:NB Linear Systems 24" Inch (609.6mm) Length 1/2" inch Diameter Shaft |
WA8-24PD NB Shaft Support Rail, 1/2" Diameter x 24" inch Long Shaft.
|

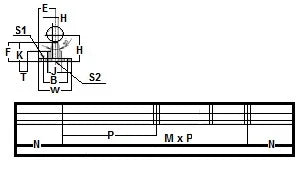

| Major dimensions | Mounting dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | E | W | F | T | K | J | h1 | B | N | MxP | S1 | S2 | ||
| hole | bolt | hole | bolt | |||||||||||
| 1-1/4" | 3/4" | 1-1/2" | 29/32" | 3/16" | 15/32" | 1/2" | 1/4" | 1" | 2" | 5x4 | 13/64" | 6 | 13/64" | 6 |
