VXB

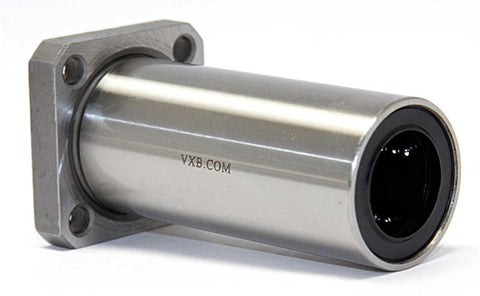

16mm Square Flanged Bushing Linear Motion Bearing LBK16UU LMK16UU
$38.06 CAD
$51.37 CADyou save $13.31 CAD
SKU: Kit7145
UPC: 00193019279731
UPC: 00193019279731
Square Flanged Linear Motion |
Specs |

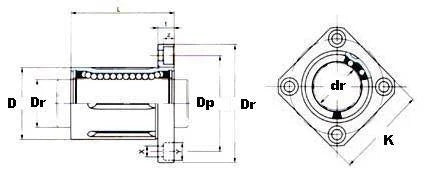

Main Dimensions and Tolerances
|
Basic Load Rating |
|||||||||||||
dr |
D |
L |
flange |
dynamic
(CN) |
static (CoN) |
||||||||||
mm |
tolerances |
mm |
tolerances |
mm |
tolerances |
Df mm |
K mm |
t mm |
Dp mm |
X mm |
Y mm |
Z mm |
|||
Square Flanged |
16 |
0 -9 |
28 |
0 -16 |
37 |
300 |
48 |
37 |
6 |
38 |
4.5 |
7.5 |
4.1 |
774 |
1180 |
