8mm CNC Flanged Shaft Support Block Supporter
UPC: 00193019280218

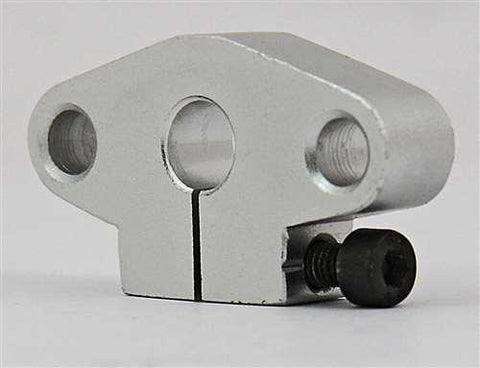

8mm CNC Flanged Shaft Support Block
✔️ Precision Aluminum Shaft Mount
This 8mm flanged shaft support block is made for CNC machines, 3D printers, robotics, and linear motion setups. It holds 8mm shafts tight and steady, letting your linear bearings run smoothly. Made of lightweight but tough aluminum, this mount is easy to install and locks down with an M4 bolt and M5 mounting screws.
✅ For Shaft Diameter: 8mm
✅ Material: Machined Aluminum Alloy
✅ Weight: 0.03 lbs
✅ Type: Flanged Shaft Support Block
✅ Quantity: 1 Block

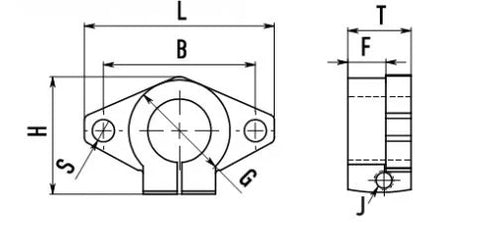

| Spec | Value |
|---|---|
| W (Width) | 43mm |
| L (Length) | 10mm |
| T (Height) | 5mm |
| F (Hole Distance) | 24mm |
| G (Center Height) | 20mm |
| B (Base to Top Hole Center) | 32mm |
| S (Mount Hole Diameter) | 5.5mm |
| Locking Bolt | M4 |
| Install Bolts | M5 |
☑️ Supports 8mm linear shafts for precise CNC alignment
☑️ Flange style for easy bolted surface mounting
☑️ Lightweight and corrosion-resistant aluminum
☑️ Great for linear guides, 3D printers, or automation builds
☑️ Compact and strong for tight setups
💡 Why use flanged shaft supports in CNC and linear motion builds?
Flanged supports add stability and simplify setup:
-
Keep shafts aligned and reduce wobble
-
Flange mount makes surface installation fast
-
Ideal for dual-end shaft support in longer linear rail systems
-
Boosts precision in motorized movement systems
Keep your CNC rails aligned and steady, this little block does big work.
