LK1630UU 16mm Sealed Ball Bushing 16x24x30mm Linear Motion Bearing
UPC: 00193019068960

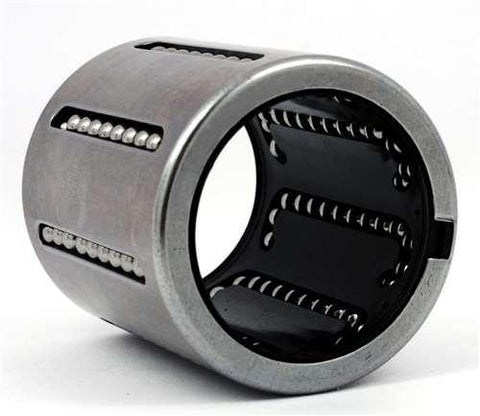

LK1630UU Linear Ball Bushing
✔️ Sealed 16mm Shaft Size - Compact & Smooth Motion
The LK1630UU is a compact linear motion ball bushing with five ball rows and built-in seals for protection. Designed for 16mm shafts, this precision bushing ensures smooth linear travel in CNC machines, automation tools, and guided motion systems.
✅ Pack size: 1 bearing
✅ Shaft diameter (d): 16mm
✅ Outer diameter (D): 24mm
✅ Overall length (B): 30mm
✅ Number of ball rows: 5
✅ Dynamic load rating: 101.43 lbf
✅ Static load rating: 130.10 lbf
✅ Type: Linear motion ball bushing
✅ Sealed design for protection against dust and debris

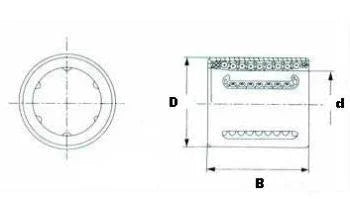

Dimensional Table:
| Type | Shaft (d) | Outer (D) | Length (B) | Ball Rows | Dynamic Load | Static Load |
|---|---|---|---|---|---|---|
| LK1630UU | 16mm | 24mm | 30mm | 5 | 101.43 lbf | 130.10 lbf |
💡 What is a sealed linear ball bushing used for?
These bearings provide smooth, guided motion along shafts while protecting against contaminants.
Great for:
-
3D printers and CNC machines
-
Sliding automation stages
-
Linear rails in robotics
-
Motion control setups
Sealed, smooth, and ready for action - upgrade your linear system with this LK bearing and feel the difference in precision!
