5200 2Z Angular Contact 2-Row Ball Bearing 10x30x14.3mm
UPC: 00193019013816

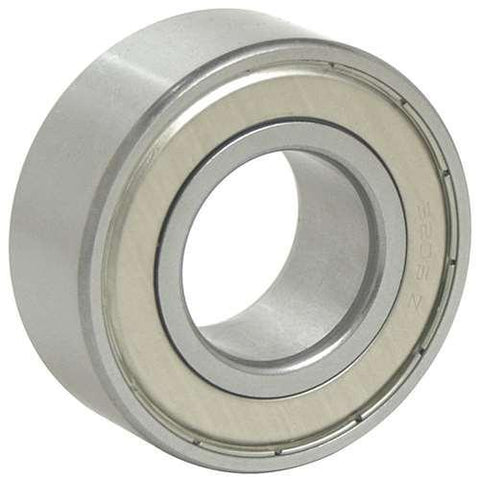

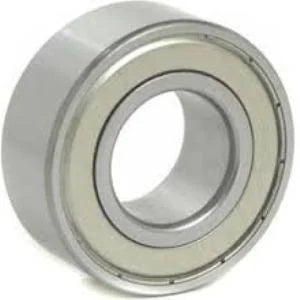

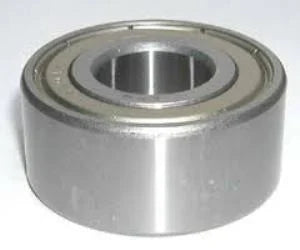

5200 2Z Angular Contact Ball Bearing
✔️ 10mm ID × 30mm OD × 14.3mm Wide - Double-Row - Shielded - 1 Bearing
The 5200 2Z is a double-row angular contact ball bearing built for handling combined radial and axial loads with precision. Equipped with metal shields on both sides, it offers reliable protection against dust and debris. Pre-lubricated and made from high-strength chrome steel, this bearing is ideal for high-speed rotating assemblies.
✅ Inner diameter (ID): 10mm
✅ Outer diameter (OD): 30mm
✅ Width: 14.3mm
✅ Type: Double-row angular contact bearing
✅ Closures: Double metal shields (2Z/ZZ)
✅ Material: Chrome steel (52100 alloy)
✅ Pre-lubricated with grease
✅ Dynamic load rating: 7,300 N
✅ Static load rating: 4,000 N
✅ Max grease-lubricated speed: 18,000 RPM
✅ Quantity: 1 bearing
Dimensions Table (mm):
| ID | OD | Width | Load Rating (Cr) | Load Rating (Cor) | Max RPM |
|---|---|---|---|---|---|
| 10mm | 30mm | 14.3mm | 7,300 N | 4,000 N | 18,000 |
💡 Why choose a double-row angular contact bearing like the 5200 2Z?
Double-row angular contact bearings provide high stiffness and can support thrust loads in both directions, making them ideal for demanding applications like machine tool spindles, pumps, and gearboxes.
Compact, shielded, and high-performing - drop in the 5200 2Z and keep your motion running smooth and strong!
