5200 2ZR Shielded Angular Contact Bearing
UPC: 00193019059333

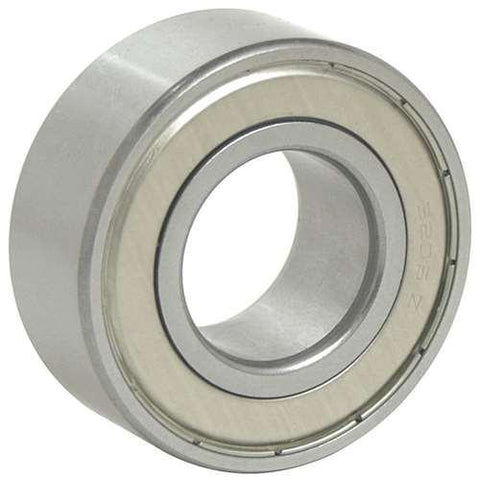

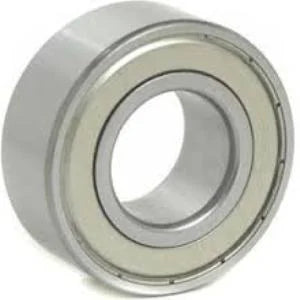

5200 2ZR Angular Contact Ball Bearing
✔️ 10mm ID × 30mm OD × 14.3mm Wide - Double Shielded - 1 Bearing
The 5200 2ZR is a double-row angular contact ball bearing designed for combined axial and radial load handling. Featuring metal shields on both sides, this bearing offers solid protection from dust and debris. It's pre-lubricated with grease and ready for use in pumps, gearboxes, and rotating assemblies that demand speed and reliability.
✅ Inner diameter (ID): 10mm
✅ Outer diameter (OD): 30mm
✅ Width: 14.3mm
✅ Design: Double-row angular contact
✅ Closures: Double metal shields (2ZR/ZZ)
✅ Material: Chrome steel (52100 alloy)
✅ Lubrication: Greased and maintenance-free
✅ Dynamic load rating (Cr): 7,300 N
✅ Static load rating (Cor): 4,000 N
✅ Max grease-lubricated speed: 18,000 RPM
✅ Quantity: 1 bearing
Dimensions Table (mm):
| ID | OD | Width | Cr (N) | Cor (N) | Max RPM |
|---|---|---|---|---|---|
| 10mm | 30mm | 14.3mm | 7,300 | 4,000 | 18,000 |
💡 What makes double-row angular contact bearings like the 5200 2ZR ideal for dynamic loads?
They provide enhanced axial stiffness and load capacity in both directions compared to single-row bearings - perfect for machinery that sees thrust and radial forces simultaneously at high speeds.
Reliable, sealed, and ready to roll - upgrade to the 5200 2ZR for strong, balanced performance where it counts!
