F688-2RS Flanged Sealed Bearing 8x16x5mm Miniature Bearing

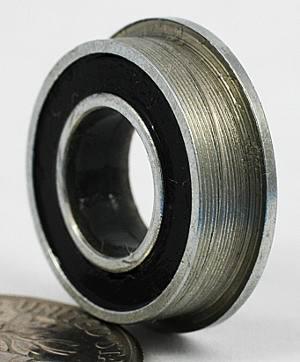

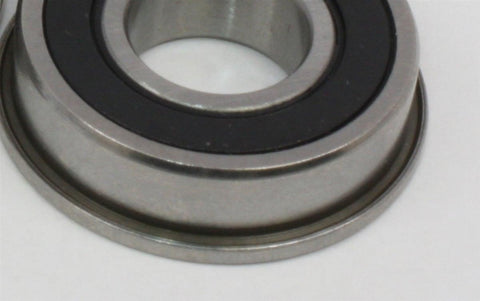

F688-2RS Flanged Ball Bearing
✔️ Sealed Deep Groove - 8mm x 16mm x 5mm

The F688-2RS is a flanged deep groove ball bearing made for compact setups that need reliable, sealed performance. With double rubber seals and pre-lubed grease, this 8mm ID bearing is ready to block out dust and keep things spinning. Flange design makes it easy to mount in housings. Sold as one bearing.

✅ Inner Diameter: 8mm
✅ Outer Diameter: 16mm
✅ Width: 5mm
✅ Flanged outer ring for easy mounting
✅ Sealed on both sides with rubber seals
✅ Chrome steel construction
✅ Grease-lubed for up to 28,000 RPM
✅ Dynamic Load: 1,600 N
✅ Static Load: 710 N
✅ Quantity: 1 bearing

💡 What’s the purpose of a flanged ball bearing?
Flanges help keep the bearing fixed in place inside housings.

• Prevents axial movement in assemblies

• Eases alignment during installation

• Great for 3D printers, RC motors, and robotics

• Common in small gearboxes and hobby builds

If you’re working in tight spots where precision matters, this little flanged bearing is the way to go, grab one today and lock in that performance!
