LR200NPP Track Roller Bearing Sealed 10x32x9mm
UPC: 00193019067529
Type: Track Single Row Ball Bearing
Size: 10mm x 32mm x 9mm
Bearing inner Diameter: 10mm
Bearing outer Diameter: 32mm

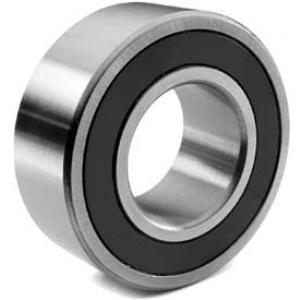

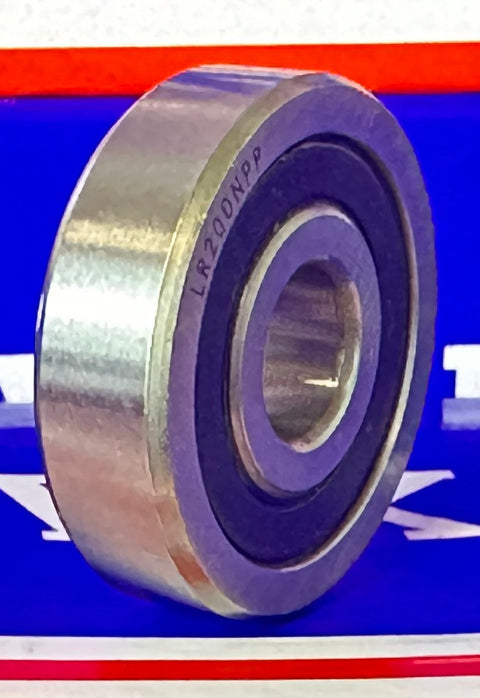

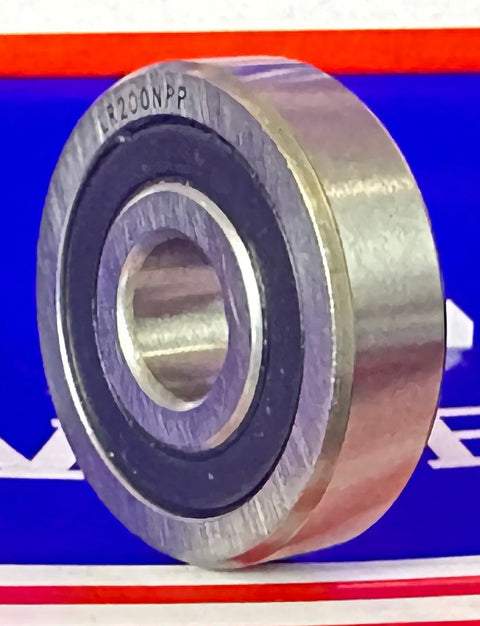

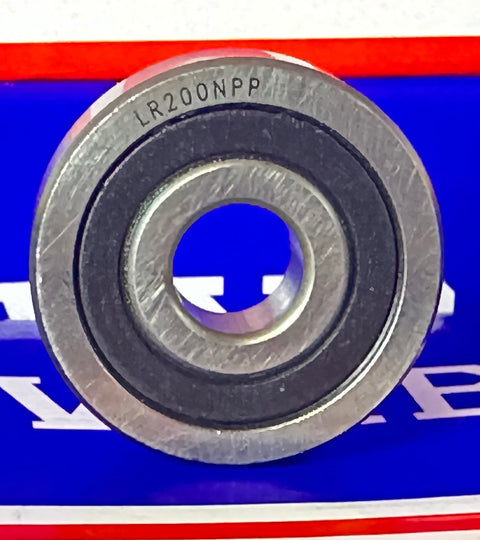

LR200NPP Track Roller Bearing
✔️ 10x32x9mm - Single Row - Sealed Ball Bearing
The LR200NPP is a sealed track roller bearing designed for guide rails, linear motion systems, and material handling equipment. With a 10mm bore and compact size, this single-row bearing delivers smooth rolling action and dependable load handling in track-based applications.
✅ Single row design for compact, reliable performance
✅ Sealed to keep out debris and retain grease
✅ Dimensions: 10mm ID x 32mm OD x 9mm Width
✅ Dynamic Load Rating: 4,850 N
✅ Static Load Rating: 2,310 N
✅ Quantity: 1 bearing
💡 What is a track roller bearing used for in mechanical systems?
Track rollers are built for motion along a fixed path under consistent load.
-
Common in linear guide systems and automated machinery
-
Great for supporting loads with minimal rolling resistance
-
Sealed to reduce maintenance and extend bearing life
-
Perfect for cams, conveyors, and transport lines
If your system rolls along a track and needs a smooth, strong runner, the LR200NPP fits the bill. Add one now and keep your motion controlled and reliable.
