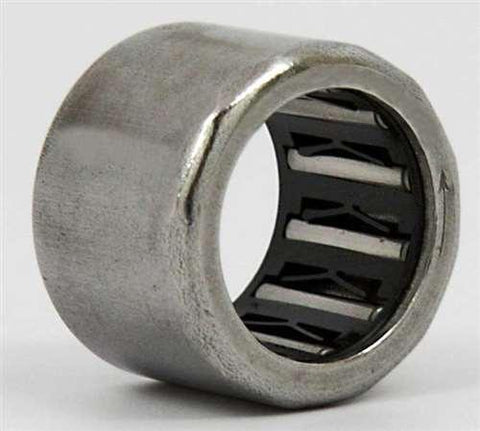

HF1012 One-Way Needle Bearing/Clutch 10x14x12mm
UPC: 00193019050286
Type: Needle Roller Bearing
Size: 10mm x 14mm x 12mm
Inner Diameter: 10mm
Outer Diameter: 14mm
One Way Needle Roller Bearing 10mm ID
✔️ HF1012 - Shell Type, Compact Clutch Function
The HF1012 is a one-way needle roller bearing designed for compact, unidirectional rotation control. It features a shell-type outer ring and is commonly used in indexing systems, backstops, and overrunning clutches. Its small footprint makes it a go-to for tight mechanical designs where motion needs to be controlled in one direction. Ships as a single bearing.
✅ Pack size: 1 bearing
✅ Inner diameter: 10mm
✅ Outer diameter: 14mm
✅ Width: 12mm
✅ Bearing type: One-way (clutch)
✅ Style: Shell type needle roller
✅ Compact, lightweight design
Dimension Table:
| Inside (ID) | Outside (OD) | Width |
|---|---|---|
| 10mm | 14mm | 12mm |
💡 What are one-way needle bearings used for in motion systems?
They’re built to allow rotation in only one direction:
-
Great for backstops, overrunning clutches, and indexing drives
-
Provide compact and cost-effective torque control
-
Used in power tools, gearboxes, printers, and conveyors
-
Ideal for tight spaces where direction control is key
If you're looking to manage one-way rotation with compact strength, grab this HF1012 and let it do the holding for you!
