NA6900UU Needle Roller Bearing 10x22x23mm - Machined Type
VXB

NA6900UU Needle Roller Bearing 10x22x23mm - Machined Type


$28.54 CAD $38.52 CADyou save $9.98 CAD
SKU: Kit7905
UPC: 00193019283646
Item: NA6900UU Bearing
Type: Needle Roller Bearing
Closures: Rubber Sealed (both sides)
Dimensions: 10mm x 22mm x 23mm /Metric
ID (inner diameter)/Bore: 10mm

NA6900UU Needle Roller Bearing
One Bearing

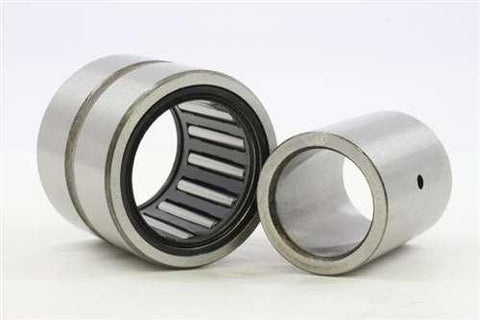

Machined needle roller bearing NA6900UU, measures an inner diameter of 10mm, the outer diameter is 22mm, width of the cone (inner ring) is 23mm, and the outer ring width is 22mm.

  • NA6900UU Bearing
  • Needle Roller Bearing
  • Closures: Rubber Sealed (both sides)
  • Dimensions: 10mm x 22mm x 23mm /Metric
  • ID (inner diameter)/Bore: 10mm
  • OD (outer diameter): 22mm
  • Width: 23mm
  • Size: 10mm x 22mm x 23mm
  • Quantity: 1 Bearing
  • Basic Dynamic Load Rating: 2,545 LBF
  • Basic Static Load Rating: 4,020 LBF



    Dimensions
    d dr D B B1
    10mm 14mm 22mm 22mm 23mm
