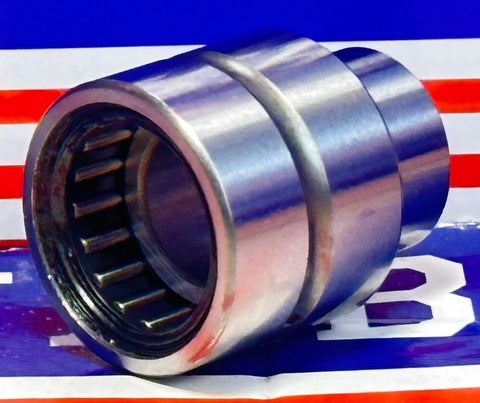

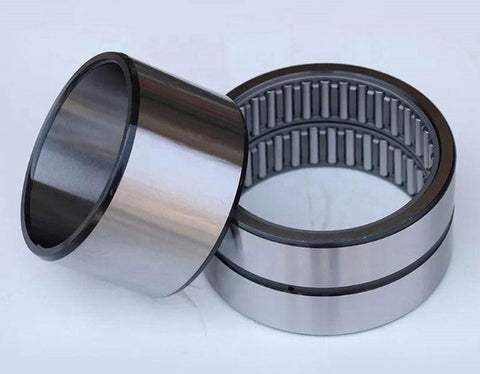

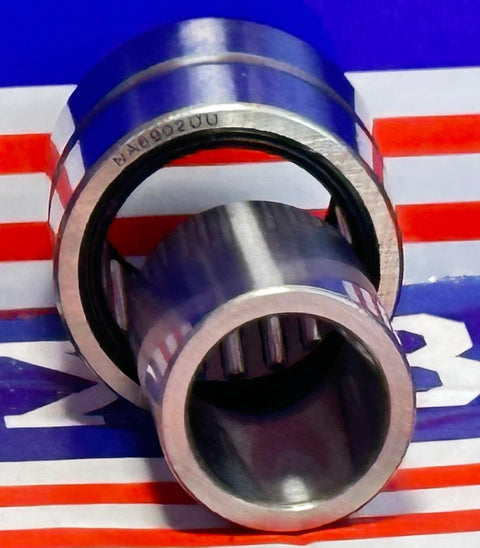

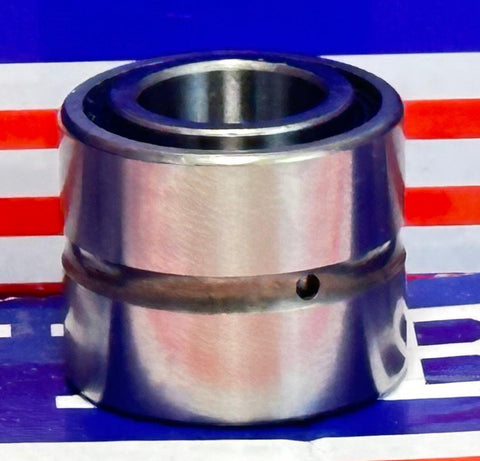

NA6902UU Needle Roller Bearing 15x28x24mm - Machined Type

Machined needle roller bearing NA6902UU, measures an inner diameter of 15mm, the outer diameter is 28mm, width of the cone (inner ring) is 24mm, and the outer ring width is 23mm.

• NA6902UU Bearing
• Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 15mm x 28mm x 24mm /Metric
• ID (inner diameter)/Bore: 15mm
• OD (outer diameter): 28mm
• inner ring: 24mm
• outer ring: 23mm
• Size: 15mm x 28mm x 24mm
• Quantity: 1 Bearing
• Basic Dynamic Load Rating: 1,880 KGF
• Basic Static Load Rating: 2,760 KGF





  Dimensions
  d	dr	D	B	B1
  15mm	20mm	28mm	23mm	24mm
