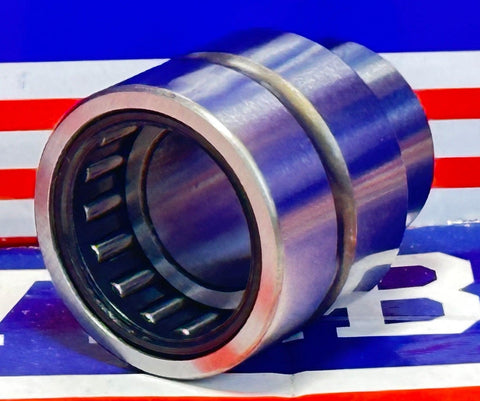

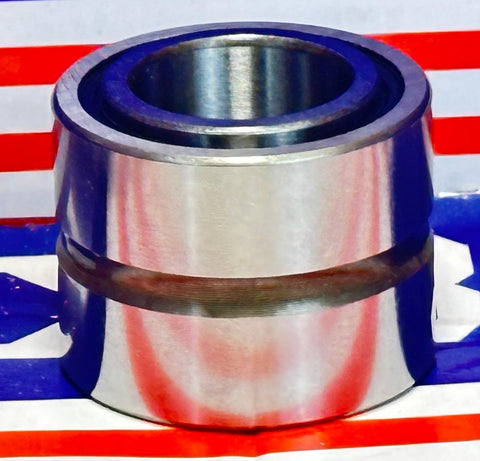

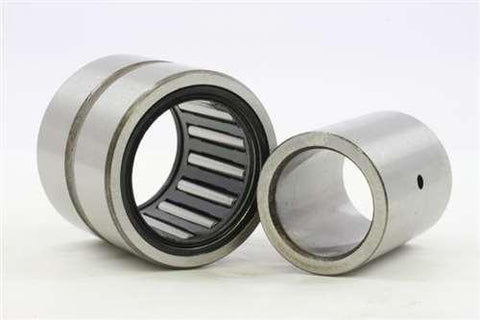

NA6903UU Needle Roller Bearing 17x30x24mm - Machined Type
UPC: 00193019283622
Type: Needle Roller Bearing
Closures: Rubber Sealed (both sides)
Dimensions: 17mm x 30mm x 24mm /Metric
ID (inner diameter)/Bore: 17mm
NA6903UU Needle Roller Bearing
✔️ 17x30x24mm - Rubber Sealed - Machined Ring Design
The NA6903UU is a heavy-duty needle roller bearing built to support high radial loads in compact setups. With a rubber seal on each side, this bearing keeps out debris while running smooth under pressure. Ideal for gearboxes, agricultural equipment, and rotating assemblies with limited space.
✅ Sealed needle roller bearing for radial load support
✅ Machined inner and outer ring for strength and precision
✅ Double rubber seals keep grease in and contamination out
✅ Dimensions: 17mm ID x 30mm OD x 24mm Inner Ring Width
✅ Outer ring width: 23mm
✅ Dynamic Load Rating: 2,020 kgf
✅ Static Load Rating: 3,120 kgf
✅ Quantity: 1 bearing
Dimensions Table (mm):
| d | dr | D | B | B1 |
|---|---|---|---|---|
| 17 | 22 | 30 | 23 | 24 |
💡 What are the advantages of rubber-sealed needle roller bearings?
These bearings are made for tough environments with space and load demands.
-
Rubber seals block out moisture and grit
-
Ideal for compact applications with high radial forces
-
Used in construction gear, agricultural machines, and motors
-
Machined rings offer better fit and long-term durability
If your system needs a narrow, high-load bearing that stays clean, the NA6903UU is a strong pick. Add it to your lineup and keep things turning with confidence.
