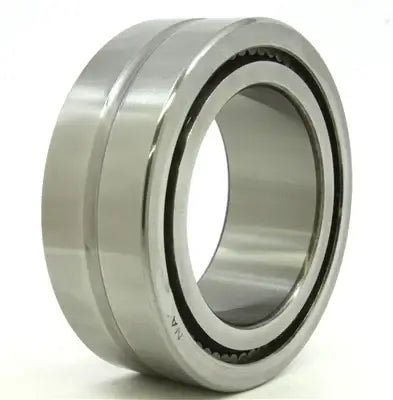

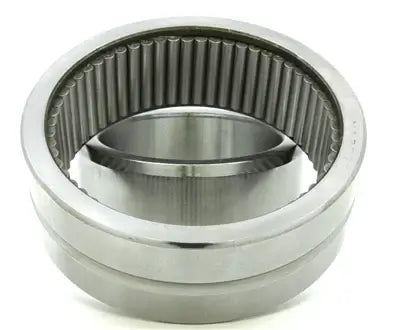

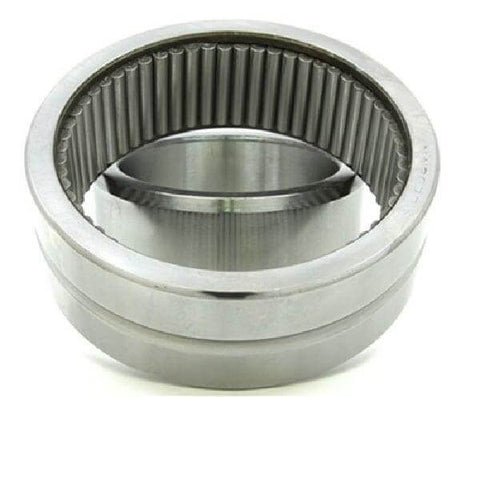

NAV4004 Full Complement Needle Roller Bearing 20x42x22mm
UPC: 00193019300862
Type: Full Complement Needle Roller Bearing
Dimensions: 20mm x 42mm x 22mm
Brand VXB Bearing
Quantity: One Bearing
NAV4004 Full Complement Needle Bearing
✔️ 20x42x22mm - With Inner Ring - Heavy Load Support
The NAV4004 is a full complement needle roller bearing built for serious radial load applications. With no cage inside, it packs more rollers into the same space for maximum contact and support. It includes an inner ring, making it ideal for systems where the shaft surface isn't hardened or finished.
✅ Full complement design for higher load capacity
✅ Includes inner ring for use with non-hardened shafts
✅ Dimensions: 20mm ID x 42mm OD x 22mm Width
✅ Dynamic Load Rating: 4,850 N
✅ Static Load Rating: 4,900 N
✅ Quantity: 1 bearing
Dimensions Table (mm):
| d | D | B | r (min) |
|---|---|---|---|
| 20 | 42 | 22 | 1 |
💡 Why choose a full complement needle bearing with an inner ring?
These bearings are built for high loads in compact areas where strength matters most.
-
More rollers = higher load capacity
-
Inner ring supports use with soft or unfinished shafts
-
Ideal for presses, conveyors, and gearboxes
-
Great for slow to moderate speed applications with heavy loads
If you're building or repairing something that takes a beating, the NAV4004 is built to handle the pressure. Add it to your system and keep the load moving smooth.
