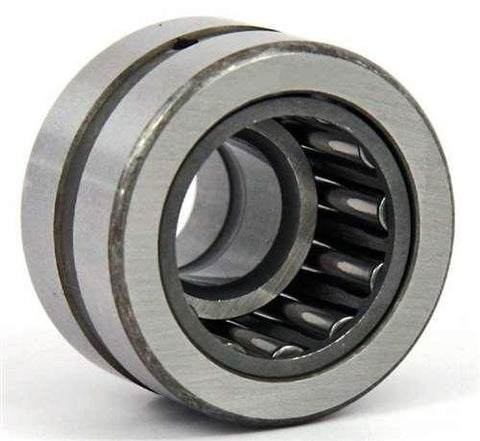

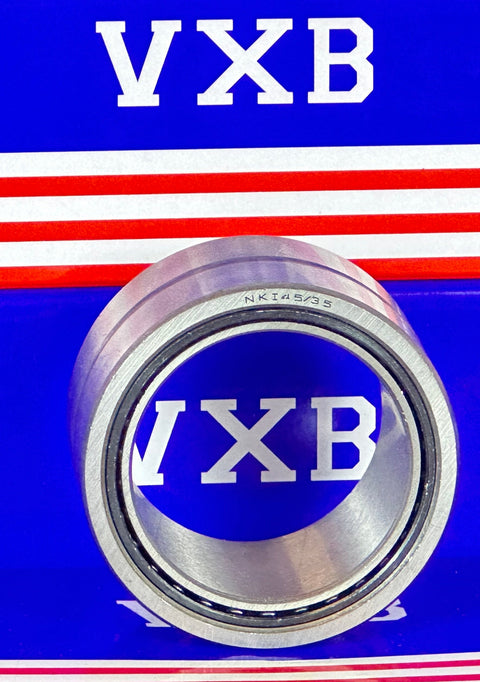

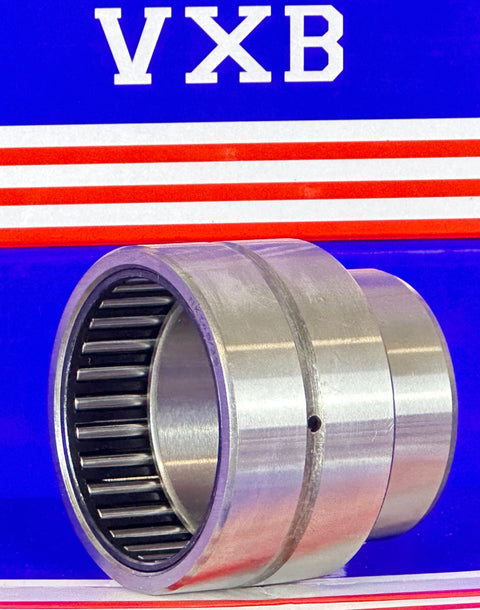

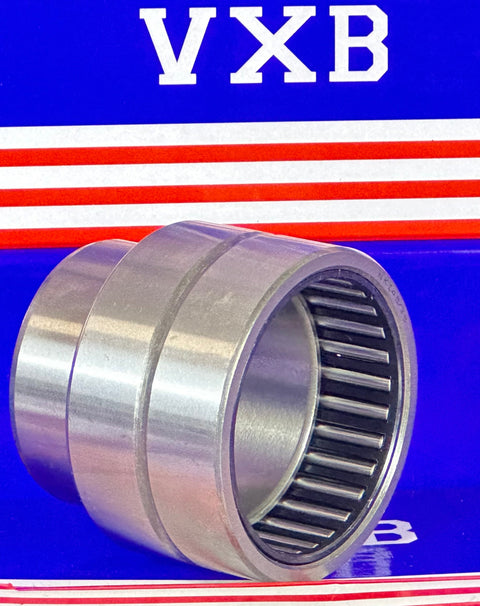

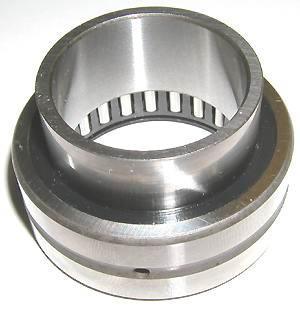

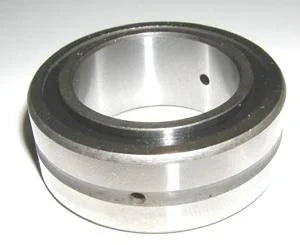

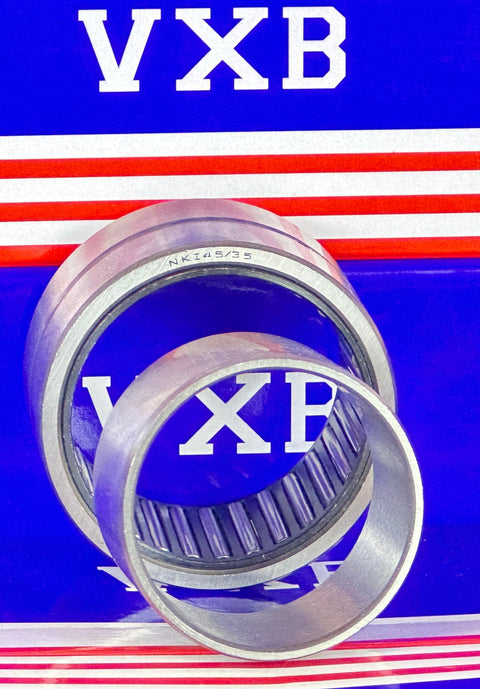

NKI45/35 Needle Roller Bearing 45x62x35mm - Machined Type
UPC: 00193019067147
Type: Needle Roller Bearing
Dimensions: 45mm x 62mm x 35mm/Metric
Size: 45 x 62 x 35 mm
Quantity: One Bearing
NKI45/35 Needle Roller Bearing - Machined Type
✔️ 45mm ID x 62mm OD x 35mm Wide - Heavy-Duty Design
The NKI45/35 is a machined needle roller bearing built for compact applications that demand high radial load capacity. With a solid steel outer ring and precision-ground rollers, it's ideal for gearboxes, pumps, and industrial drives. This bearing has a 45mm bore and 35mm width for tight, efficient fits. Sold as one bearing.
✅ Inner diameter: 45mm
✅ Outer diameter: 62mm
✅ Width: 35mm
✅ Machined outer ring for durability
✅ Dynamic load rating: 5,920 N
✅ Static load rating: 12,800 N
✅ Pack size: 1 bearing

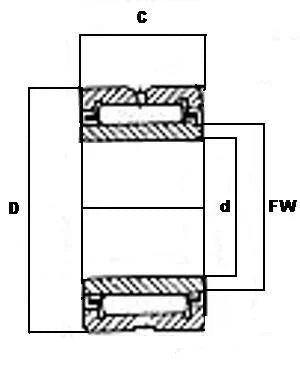

Dimensions Table (in mm):
| d (Bore) | FW (Roller Width) | D (OD) | C (Width) |
|---|---|---|---|
| 45 mm | 50 mm | 62 mm | 35 mm |
💡 What makes machined needle roller bearings ideal for high-load compact systems?
They're designed to handle tough jobs in small spaces.
-
High radial load capacity in slim formats
-
Machined outer ring offers better strength and fit
-
Perfect for gearboxes, transmissions, and pulleys
-
Ideal where space is tight but durability is key
Built to take a beating and still roll smooth, grab the NKI45/35 for solid, compact performance that holds up under pressure.
