20mm Bearing UCF204 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
$102.77 CAD
$138.74 CADyou save $35.97 CAD
SKU: UCF204-BLACK
UPC: 00193019332412
UPC: 00193019332412
Item: UCF204 Bearing
Type: Mounted Bearing
Bolt Size: M10
Shaft Diameter: 20mm
Basic Load (Cr): 12,800 N
Type: Mounted Bearing
Bolt Size: M10
Shaft Diameter: 20mm
Basic Load (Cr): 12,800 N
| UCF204 Black Oxide Plated Insert 20mm Mounted Bearing With Square Flanged Housing One Bearing |
|
UCF204 Black Oxide Plated Insert Mounted Bearing with square flanged Housing, measures an inner diameter of 20mm. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.
|

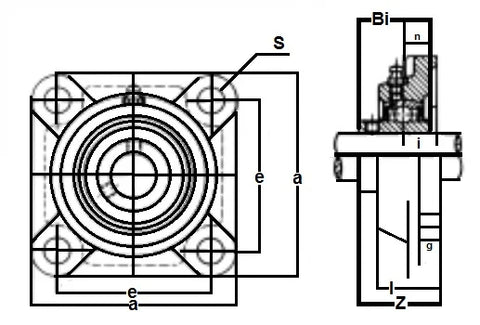

| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| a | e | i | g | l | s | z | Bi | n |
| 85.73 | 63.9 | 15.08 | 11.9 | 25.4 | 11.9 | 33.34 | 31 | 12.7 |
