20mm Bearing UCFL-204 + 2-Bolt Flanged Cast Housing Mounted Bearing
UPC: 00193019049297
Type: Mounted Bearings
Bolt Size: M10
Basic Load (Cr): 12,800 N
Basic Load (Cor): 6,650 N
20mm Mounted Bearing UCFL-204
✔️ Two-Bolt Flange Unit - 20mm Bore
The UCFL-204 is a sturdy 2-bolt flange mounted bearing designed for easy installation and reliable performance. With a 20mm inner diameter, it’s ideal for machinery, conveyors, and agricultural equipment that require secure shaft mounting and smooth rotation.
✅ Type: Two-bolt flange mounted bearing
✅ Bore size: 20mm
✅ Bolt size: M10
✅ Basic dynamic load rating (Cr): 12,800 N
✅ Basic static load rating (Cor): 6,650 N
✅ Bearing number: UC204
✅ Quantity: 1 bearing

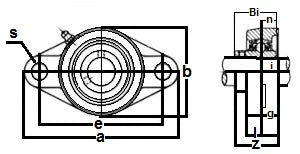

| Dimension | Value (mm) |
|---|---|
| a | 112.7 |
| e | 90.1 |
| i | 15.1 |
| g | 11.11 |
| l | 25.4 |
| s | 11.9 |
| b | 60.3 |
| z | 33.34 |
| Bi | 34 |
| n | 12.7 |
💡 Why use a 2-bolt flange bearing?
-
Easy to mount with secure bolt alignment
-
Designed to handle both radial and axial loads
-
Self-aligning capability helps reduce misalignment issues
This UCFL-204 delivers dependable mounting and long-lasting performance, ready to keep your equipment running smoothly.
