35mm Bearing UCF207 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
35mm Bearing UCF207 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing
VXB

35mm Bearing UCF207 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing


$138.94 CAD $187.56 CADyou save $48.62 CAD
SKU: UCF207-BLACK
UPC: 00193019332542
Item: UCF207 Black Oxide Plated Insert Bearing + Square flange Housing
Type: Mounted Bearing
Bolt Size: M12
Shaft Diameter: 35mm
Basic Load (Cr): 25,700 N

UCF207 35mm Mounted Bearing
One Bearing


UCF207 Black Oxide Plated Insert Mounted Bearing with Square flange Housing, measures an inner diameter of 35mm. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF207 Black Oxide Plated Insert Bearing + Square Flange Housing
  • Mounted Bearing
  • Bolt Size: M12
  • Shaft Diameter: 35mm
  • Basic Load (Cr): 25,700 N
  • Basic Load (Cor): 15,400 N
  • Bearing No: UC207
  • Quantity: 1 Bearing

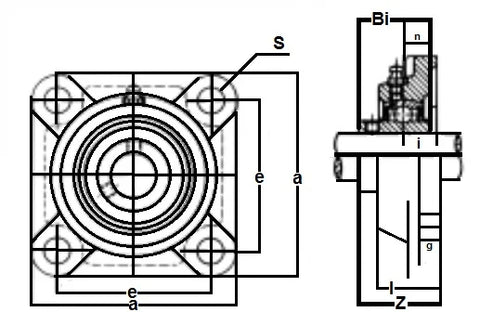

Dimensions (mm)
a e i g l s z Bi n
116.7 92.1 19.05 15.88 34.1 13.9 44.5 42.9 17.5
