VXB
50mm Bearing HCFL210 2-Bolt Flanged Cast Housing Mounted Bearing - Eccentric Collar
$140.84 CAD
$190.14 CADyou save $49.30 CAD
SKU: HCFL210
UPC: 00193019200247
UPC: 00193019200247
Item: HCFL210 Bearing
Type: Mounted Bearings
Bolt Size: 5/8
Basic Load Dynamic (Cr): 35,100 N
Basic Load Static (Cor): 23,300 N
Type: Mounted Bearings
Bolt Size: 5/8
Basic Load Dynamic (Cr): 35,100 N
Basic Load Static (Cor): 23,300 N
| HCFL210 Mounted Bearing with Eccentric Collar 50mm Inner Diameter |
HCFL210 mounted bearing. The inner diameter is 50mm.
|

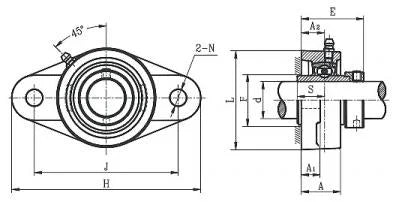

| Dimensions (mm) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | J | N | A | A1 | A2 | E | L | S | ||
| 50mm | 197 | 157 | 19 | 40 | 15 | 24.6 | 62.7 | 115 | 22 | ||
