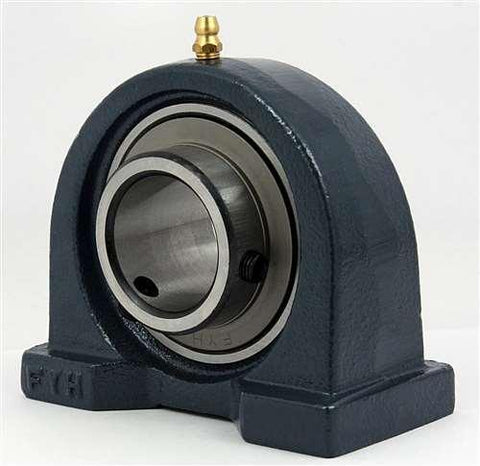

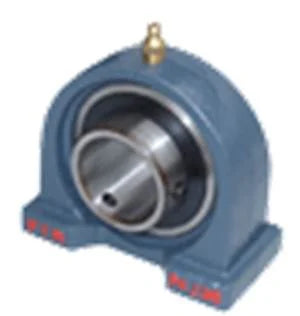

FYH Bearing UCPA203 17mm Pillow Block Mounted Bearing
UPC: 00193019079041
Type: Tapped-base pillow units
Basic Load (Cr): 12.8 KN
Basic Load (Cor): 6.65 KN
Bearing No: UC203
UCPA203 FYH Tapped-Base Pillow Block Bearing
✔️ 17mm Bore - Compact Mount - Cylindrical Bore with Set Screws
The UCPA203 is a compact pillow block bearing unit designed with a tapped base for tight mounting spaces. With a 17mm inner diameter and cylindrical bore, it’s easy to install and secure with set screws. Ideal for conveyors, packaging machines, and other space-sensitive applications. This listing includes one bearing unit.
✅ Unit type: Tapped-base pillow block
✅ Model: UCPA203
✅ Inner diameter: 17mm
✅ Locking method: Set screws (on shaft)
✅ Bearing number: UC203
✅ Dynamic load rating (Cr): 12.8 kN
✅ Static load rating (Cor): 6.65 kN
✅ Quantity: 1 bearing

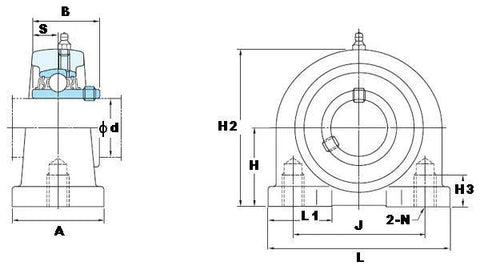

Dimensions (mm):
| d | H | L | A | J | N | H2 | H3 | L1 | B | S |
|---|---|---|---|---|---|---|---|---|---|---|
| 17 | 30.2 | 76 | 40 | 52 | M10x1.5 | 60 | 13 | 27 | 31 | 12.7 |
💡 Why choose tapped-base pillow blocks for tight spaces?
Tapped-base pillow blocks allow mounting from the bottom, making them ideal where top or side bolt access isn’t available. They offer a solid, secure base while saving space - perfect for conveyors and compact equipment.
Keep your machinery moving in tight spots - mount this bearing and keep operations rolling without compromise!
