UCFA207 BlacK insert Flange Cartridge Bearing Unit 35mm Mounted Bearing
UPC: 00193019332764
Type: Adjustable Flange Cartridge Unit
Basic Dynamic Load (Cr): 25,700 N
Basic Static Load (Cor): 15,400 N
Bolt Size: 1/2" Inch
UCFA207 Adjustable Flange Cartridge Unit - Black Insert
✔️ 35mm Shaft ID - Heavy Duty - Bolt-On Housing
The UCFA207 is a durable adjustable flange cartridge unit with a 35mm inner diameter, perfect for supporting rotating shafts in agricultural, industrial, and mechanical applications. It features a black insert bearing mounted in a strong bolt-on FA207 housing for easy alignment and installation. This listing includes one complete unit.
✅ Unit type: Adjustable flange cartridge unit
✅ Model: UCFA207
✅ Inner diameter: 35mm
✅ Insert bearing: UC207 Black
✅ Housing: FA207
✅ Dynamic load rating (Cr): 25,700 N
✅ Static load rating (Cor): 15,400 N
✅ Bolt size: 1/2" inch
✅ Quantity: 1 bearing unit

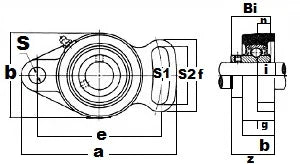

Dimensions (mm):
| a | e | i | g | S | S1 | S2 | b | f | z | Bi | n |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 161.1 | 130.2 | 19.05 | 15.9 | 13.9 | 15.08 | 65.9 | 90.1 | 82.15 | 44.45 | 42.9 | 17.5 |
💡 What’s the benefit of adjustable flange cartridge units?
Adjustable flange units offer easy alignment during installation and compensate for minor mounting surface variations. They're ideal for systems that need rugged shaft support and simple maintenance access.
Need strong support and fast alignment? This cartridge unit’s built to bolt in and get to work - order one and keep your setup rock solid!
