6206ZE Nachi Bearing One Shield Japan 30x62x16mm

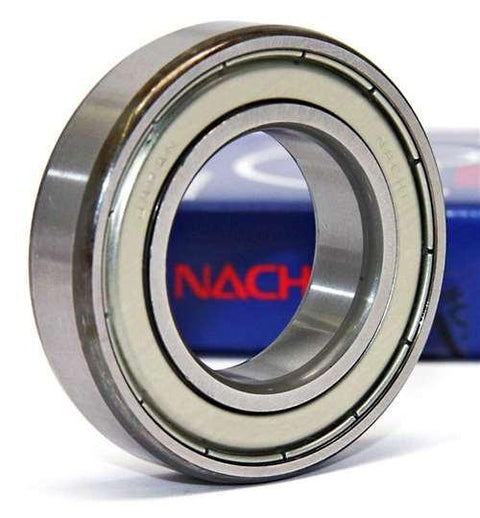

6206ZE Nachi One Shield Ball Bearing
✔️ 30mm x 62mm x 16mm Made in Japan

This is a single 6206ZE deep groove ball bearing by Nachi, built in Japan and equipped with one metal shield to keep out debris while still allowing open-side lubrication if needed. Ideal for motors, pumps, and mechanical systems where a mix of protection and grease flow is preferred.

✅ Pack of 1 Nachi bearing
✅ One metal shield for partial sealing
✅ 30mm inner diameter
✅ 62mm outer diameter
✅ 16mm width
✅ Dynamic load rating: 19,500 N
✅ Static load rating: 11,300 N
✅ Max speed with grease: 11,000 RPM
✅ Max speed with oil: 13,000 RPM
✅ Made in Japan

Dimensions Table

💡 What are the advantages of single shield ball bearings in motor systems?
They offer a balance between protection and lubrication flow:

• One side stays sealed to block out debris

• Open side allows fresh grease or oil access

• Works well in systems with internal lubrication

• Reduces friction while keeping contaminants out

Keep your build simple and smooth with this Nachi quality bearing, add it to your order and keep rolling forward!
