6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearing
6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearing
6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearing
6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearing
Nachi

6318ZNRC3/P0/00Q Nachi Bearing Shield C3 Snap Ring 90x190x43 Bearing


$1,138.28 CAD $1,536.67 CADyou save $398.39 CAD
SKU: Kit14393
UPC: 00193019098738
Item: 6318ZNRC3/P0/00Q Nachi Ball Bearing
Type: Nachi Deep groove Ball Bearing
Closures: Double shielded with Metal shields ZNR/ZZNR/2ZNR
Radial Clearance: C3
Dimensions: 90mm x 190mm x 43mm/Metric

6318ZNRC3/P0/00Q Nachi Bearing With Snap Ring and Shield
Made in Japan

6318ZNRC3/P0/00Q Nachi Bearing With Snap Ring and Shield, the 6318ZNRC3/P0/00Q inner diameter is 90mm, the 6318ZNRC3/P0/00Q outer diameter is 190mm, 6318ZNRC3/P0/00Q width is 43mm.

  • 6318ZNRC3/P0/00Q Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (ZZ) for added protection ZNR/ZZNR/2ZNR
  • Clearance: C3 (increased internal clearance for higher speed or thermal expansion)
  • Dimensions: 90mm x 190mm x 43mm/Metric
  • ID (inner diameter)/Bore: 55mm
  • OD (outer diameter): 120mm
  • Width: 43mm
  • Size: 90 x 190 x 43 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 143,000 N
  • Static load rating Cor: 107,000 N
  • Limiting Speed:
    • Grease Lubrication: 3,600 RPM
    • Oil Lubrication: 4,300 RPM
  • Made in Japan

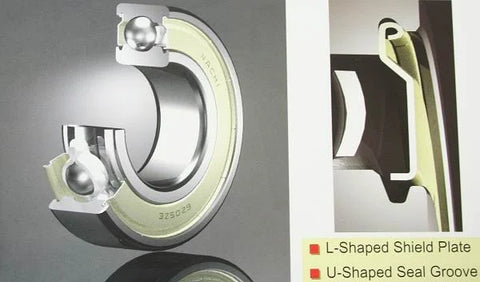

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.


    •
