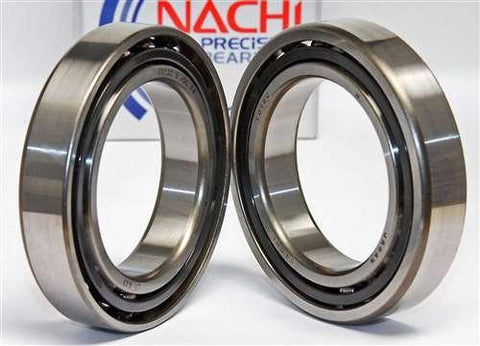

7002CYDUP4 Nachi Angular Contact Bearing 15x32x9mm ABEC-7 - Japan Made
UPC: 00193019091678
Type: Nachi Angular Ball Bearings
Cage: Polyamide resin cage
Quality: ABEC-7 (P4 quality)
Dimensions: 15mm x 32mm x 9mm/Metric
Nachi 7002CYDUP4 Angular Contact Bearings - High Precision Pair
✔️ ABEC-7 Rating - 15° Contact Angle - Made in Japan
This matched pair of Nachi 7002CYDUP4 angular contact ball bearings is built for ultra-precise, high-speed applications. With a 15mm bore, 32mm outer diameter, and 9mm width, this ABEC-7 (P4) grade set offers excellent rigidity and smooth operation - perfect for CNC spindles, robotics, and other high-precision systems.

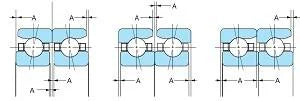

✅ Pack of 2 duplex bearings (matched pair)
✅ Precision rating: ABEC-7 / P4
✅ Contact angle: 15 degrees
✅ Cage material: Polyamide resin
✅ Dimensions: 15mm x 32mm x 9mm
✅ Made in Japan for superior reliability
✅ Designed for axial loads in one direction

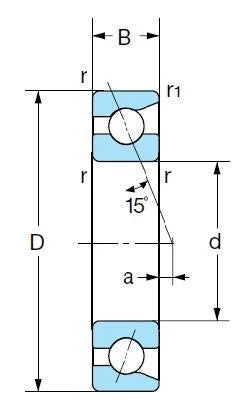

Bearing Dimensions Table:
| Inner (d) | Outer (D) | Width (B) | r | r₁ | a |
|---|---|---|---|---|---|
| 15mm | 32mm | 9mm | 0.3mm | 0.15mm | -1.8mm |
💡 Why are ABEC-7 angular contact bearings used in high-precision tools?
ABEC-7 angular contact bearings are known for their ultra-fine tolerances and ability to handle axial loads efficiently. Their tight precision and low-friction operation make them a go-to choice for machines where speed, stability, and accuracy are non-negotiable - like CNC routers, turbines, and aerospace assemblies.
These Japanese-made bearings are ready to take on serious precision work. Don’t settle for less - upgrade your project with top-tier performance today!
