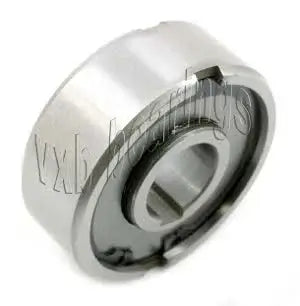

ASNU45 One-Way 45x100x36mm Bearing Support Required Backstop Clutch

ASNU45 One Way Clutch Bearing
✔️ 45mm x 100mm x 36mm - Sprag Style Backstop

ASNU45 is a heavy-duty one-way clutch (sprag type) designed for applications that demand reliable backstopping, overrunning, or indexing. This clutch allows rotation in only one direction and is ideal for use in conveyor systems, mining equipment, textile machines, and more - especially where reverse movement must be prevented.

✅ Type: One Way Clutch / Sprag Freewheel
✅ Outside Diameter: 100mm
✅ Inside Diameter: 45mm
✅ Width: 36mm
✅ Torque Capacity (TKN): 430 Nm
✅ Resistance Torque (TR): 38 Nm
✅ Requires External Bearing Support (non-bearing supported)
✅ Applications: Overrunning, Indexing, Backstopping
✅ Quantity: One Clutch

💡 Why use a one-way clutch in conveyors or elevators?
Because it prevents back-driving when power is lost - so your load doesn’t roll backward due to gravity. It’s critical for safety and equipment protection.

Need to stop reverse motion in its tracks? This clutch has your back - literally.
