CSK15P One-Way Bearing - Key-way Sprag Freewheel Backstop Clutch

CSK15P One-Way Clutch Bearing with Keyway
✔️ 15mm x 35mm x 11mm - Sprag Freewheel with Inner Ring Lock

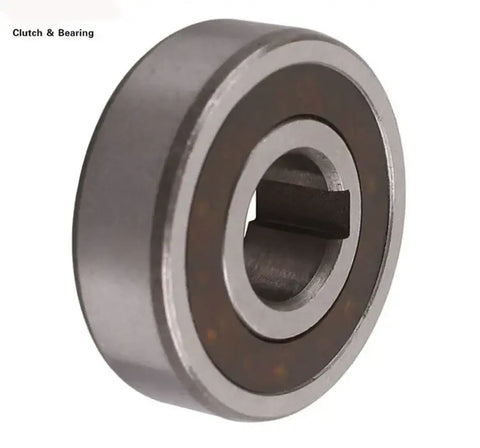

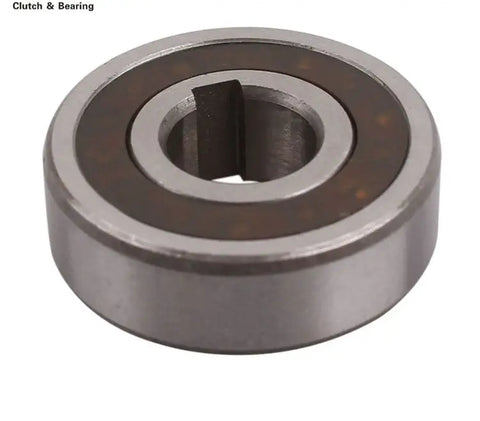

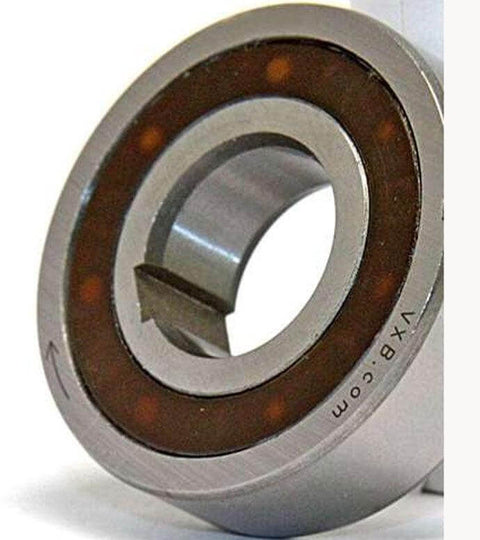

The CSK15P is a one-way sprag clutch bearing featuring a keyway on the inner ring for secure shaft connection. Designed to allow rotation in one direction only, it’s ideal for backstopping, indexing, and overrunning applications in machinery like conveyors, textile machines, and pumps.

✅ 1 one-way clutch bearing per pack
✅ Size: 15mm ID x 35mm OD x 11mm width
✅ Type: Sprag clutch bearing with keyway on inner ring
✅ Prevents reverse shaft rotation
✅ Torque capacity: 13.5 N·m
✅ Great for power-off protection and controlled motion

Dimensions:
- Inner Diameter (d): 15mm
- Outer Diameter (D): 35mm
- Width (W): 11mm
- Max Torque: 13.5 N·m

💡 Why use a one-way clutch bearing with a keyway?
It ensures reliable engagement with the shaft while allowing free motion in one direction only.

• Keyway prevents slippage and ensures secure fit

• Common in conveyors, textile, and hydraulic systems

• Protects equipment from rollback during power loss

• Ideal for backstopping, indexing, or freewheeling

Need solid one-way control in a compact form? This bearing locks in tight and keeps your system moving forward - add it to your cart and secure your motion!
