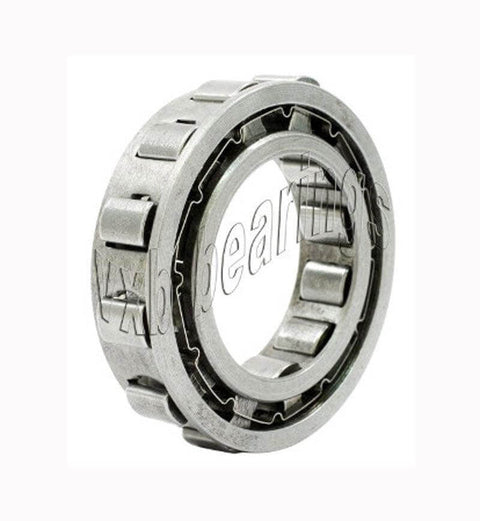

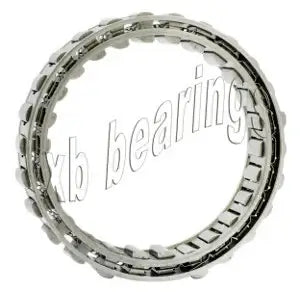

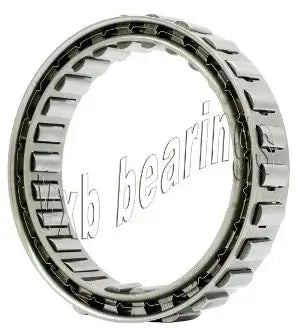

DC5476A-4C Steel Sprag One-Way 54.765x71.425x16 Clutch Bearing

DC5476A-4C Steel Sprag Clutch One Way Bearing
✔️ 54.765mm x 71.425mm x 16.000mm - Compact and Precise One-Way Control

The DC5476A-4C is a steel sprag clutch one-way bearing built for torque transmission in one direction while freewheeling in the other. Its slim 16mm profile makes it ideal for tight spaces in indexing, backstop, and overrunning applications across industrial drive systems.

✅ Type: Sprag clutch one-way bearing
✅ Inner diameter: 54.765mm
✅ Outer diameter: 71.425mm
✅ Width: 16.000mm
✅ Material: Hardened steel
✅ Function: Engages in one direction, free-spins in reverse
✅ Quantity: 1 bearing
✅ Application: Industrial automation, gearboxes, presses, conveyor systems

💡 When should you use a low-profile sprag clutch in machinery?
Thin-profile sprag clutches are ideal when space is limited but precise torque control is critical.

• Engage automatically based on shaft rotation

• Allow reverse overrunning without external control

• Minimize footprint while maintaining strength

• Great for compact mechanical drives and indexing units

Strong, slim, and built for smart control - install the DC5476A-4C and keep your motion system efficient, precise, and always turning the right way!
