GFR15 15mm Freewheel Clutch - One-Way Roller Type - Backstop/Overrunning 15x68x52mm


$475.86 CAD $642.41 CADyou save $166.55 CAD
SKU: GFR15
UPC: 00193019198155
Item: GFR15
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 15mmx68mmx52mm


GFR15 One Way Clutch
15x68x52mm


GFR15 is a one-way clutch used for overrunning, indexing, and backstopping. it is used in any applications that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.

  • GFR15
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • non-bearing supported, External Bearing Support Required
  • Dimensions: 15x68x52mm (Metric)
  • Inner Diameter: 15mm
  • Outer Diameter: 68mm
  • Width: 52mm
  • Quantity: One Clutch

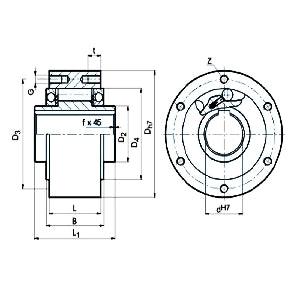

Dimension (mm)
dH7 T 1) n 2) n 3) Dh7 D2 D4 D3 G t z L L1 B t1
15 125 3600 6500 68 25 47 56 M5 8 3 52 28 32 3
