GFR25 25mm Freewheel Clutch - One-Way Roller Type - Backstop/Overrunning 25x90x60mm
UPC: 00193019198179
Type: One Way Clutch
Applications: Overrunning, Indexing, Backstopping
non-bearing supported, External Bearing Support Required
Dimensions: 25mmx90mmx60mm

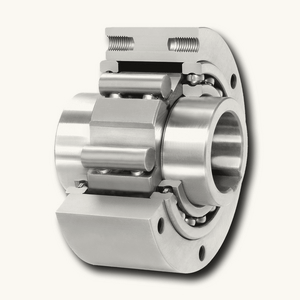

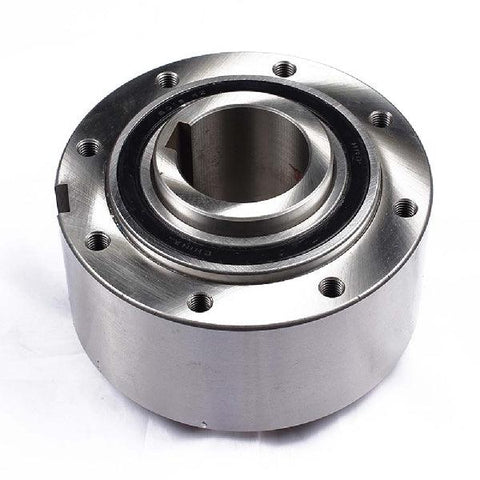

GFR25 One Way Clutch
✔️ 25mm bore clutch for overrunning, indexing, or backstopping
The GFR25 one-way clutch is built to allow rotation in one direction while locking in the other. It’s commonly used in conveyor systems, hydraulic setups, and machinery where reverse movement would cause problems, like during power loss. This unit needs external bearing support and is perfect for gearboxes, textile machines, or industrial automation.
✅ Size: 25mm ID x 90mm OD x 60mm width
✅ One-way rotation for backstopping or indexing
✅ Requires external bearing support
✅ Ideal for mining, printing, textile, and conveyors
✅ Sold individually

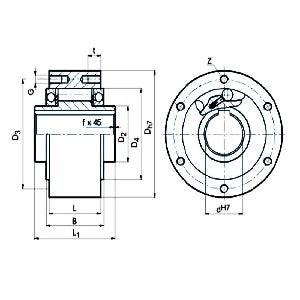

Key Dimensions (mm):
| ID (d) | OD (D) | Width (L) | L1 | B |
|---|---|---|---|---|
| 25 | 90 | 60 | 35 | 40 |
💡 What are one-way clutches used for in conveyor and industrial systems?
They keep motion moving forward and prevent reverse drift under load or gravity.
-
Stops conveyor rollback during shutdowns
-
Supports indexing and timed rotation systems
-
Helps avoid damage in power-loss events
-
Great for backstopping in motors and gear drives
Need to lock rotation in one direction without fail? This clutch has your back, grab one now and keep things moving right!
