GFRN12 12mm Bore One-Way Clutch - Keyway 12x62x42mm

GFRN12 One-Way Clutch with Keyway
✔️ 12mm Bore - External Keyed Outer Ring - 62mm OD

The GFRN12 is a non-bearing-supported one-way clutch that features a keyway on the outer diameter for torque transfer. Designed for overrun, backstop, or indexing use, it’s perfect for systems that must prevent reverse rotation, especially when power drops unexpectedly.

✅ Bore (ID): 12mm
✅ Outer Diameter (OD): 62mm
✅ Width: 42mm
✅ Outer Keyway for torque transfer
✅ Operating Speed (max): 4,000 RPM continuous / 7,200 RPM intermittent
✅ Applications: Overrunning, Indexing, Backstopping
✅ Non-bearing supported - needs external bearing support
✅ Quantity: 1 Clutch

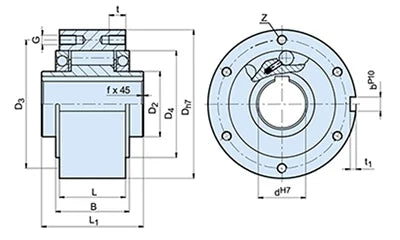

Dimensional Table (mm)

💡 How do one-way clutches prevent reverse rotation in power failure situations?
One-way clutches are super useful in vertical or inclined drive systems:

• They allow motion in only one direction, ideal for conveyors and lifts

• When power cuts off, gravity can reverse load direction; the clutch locks it in place

• They’re key in applications like escalators, printing presses, and gearboxes

• The keyway version provides direct torque locking between housing and clutch

Also called backstop clutches or overrunning clutches, perfect where reverse motion is not an option

When gravity strikes, make sure your system doesn’t backslide, this GFRN12 clutch has your back!
