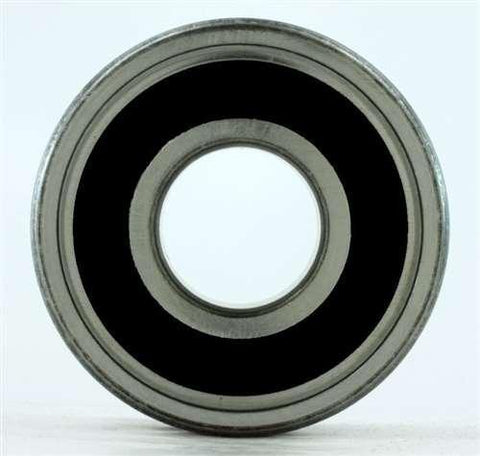

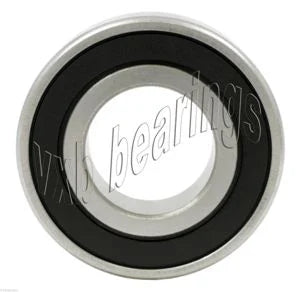

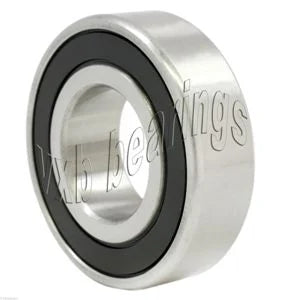

6803LU Sealed Ball Bearing 17x26x5mm

6803LU Sealed Ball Bearing is double sealed, radial and deep groove ball bearing, 6803-DU is made of Chrome Steel with chrome steel balls and steel cage, bearing is closed with rubber seals to protect the bearing from dust or any possible contamination, 6803LU bearing is sealed and self lubricated with grease.

• Item: 6803LU Ball Bearing
• Type: Deep Groove Radial Ball Bearing
• Cage: Steel
• Balls: Chrome Steel
• Radial Clearance: C0
• Material: Chrome Steel
• Quality: Electric motor quality
• Closures: Double sealed with rubber seals RS/RS1/2RS1
• Lubrication: Self Lubricated (Grease) Bearing
• Size: 17mm x 26mm x 5mm
• Inner Diameter (ID): 17mm
• Outer Diameter (OD): 26mm
• Width/Height/Bridth (W/H/B): 5mm
• Dynamic load rating Cr: 2,630 N
• Static load rating Cor: 1,570 N
• Limiting Speed:
  • Grease Lubrication: 15,000 RPM
• Quantity: One Bearing
• Equivalents: 6803-2RS and 61803-RS1 Bearings
