GE16ES-2RS Spherical Plain Bearing 16x30x14mm - Sealed
UPC: 00193019198100
Type: Double Sealed Spherical Bushings Plain Bearing
Material: Carbon Steel
Closures: 2 Rubber Seals
21-30 days shipping

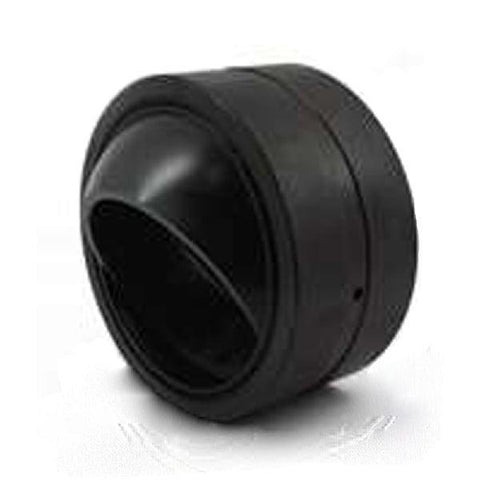

GE16ES-2RS Spherical Plain Bearing
✔️ 16mm x 30mm x 14mm - Double Sealed, Carbon Steel
The GE16ES-2RS is a heavy-duty spherical plain bearing with rubber seals on both sides for added protection. Designed for applications involving oscillation, pivoting, and misalignment, it's perfect for linkage systems, control arms, and rugged industrial joints.
✅ Type: Double sealed spherical plain bearing
✅ Material: Carbon steel
✅ Closures: Rubber seals on both sides (2RS)
✅ Inner diameter (ID): 16mm
✅ Outer diameter (OD): 30mm
✅ Width (B): 14mm
✅ Race width (C): 10mm
✅ Dynamic Load Rating: 2,500 KGF
✅ Static Load Rating: 15,000 KGF
✅ Quantity: 1 bearing
✅ Brand: VXB Bearing

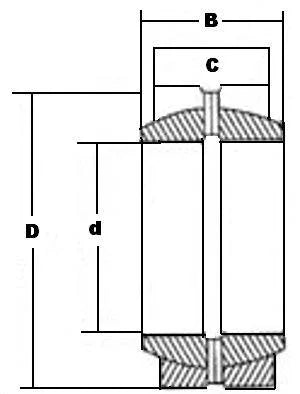

Dimensions table:
| d (ID) | D (OD) | B (Width) | C (Race Width) |
|---|---|---|---|
| 16mm | 30mm | 14mm | 10mm |
💡 What’s the benefit of sealed spherical bearings?
Sealed spherical bearings are better when:
-
You want long service life without frequent relubrication
-
You need to block dirt, grit, and water from entering
-
You’re using the bearing in outdoor or high-dust environments
This rugged bearing keeps your machinery rolling smooth - even in the toughest conditions. Ready to get rolling? We’d love to ship one your way today!
