GE80ES Spherical Bushing Plain Bearing 80x120x55mm Plain Bearing
UPC: 00193019338278

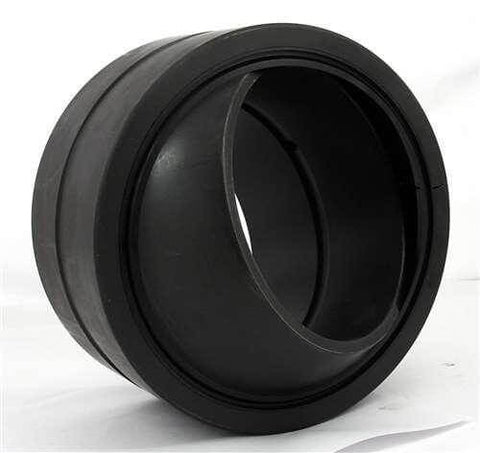

GE80ES-2RS Spherical Plain Bearing
✔️ 80mm ID × 120mm OD × 55mm Wide - Double Sealed - 1 Bearing
The GE80ES-2RS is a heavy-duty spherical plain bearing designed for oscillating motion and high load capacity. With a 2RS double-sealed design, it offers enhanced protection against dirt and moisture - perfect for use in hydraulic cylinders, construction equipment, or pivoting joints in industrial applications.
✅ Inner diameter (ID): 80mm
✅ Outer diameter (OD): 120mm
✅ Width (B): 55mm
✅ Race width (C): 45mm
✅ Type: Spherical plain bearing (ball joint style)
✅ Seals: 2RS (double rubber seals)
✅ Material: Carbon steel
✅ Motion: Self-aligning inner race for angular movement
✅ Brand: VXB Bearing
✅ Quantity: 1 bearing

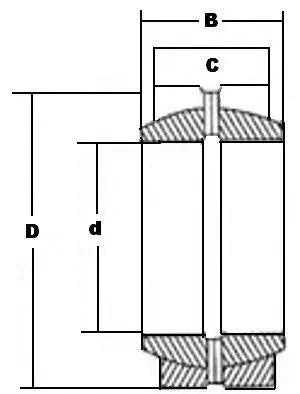

Dimensions Table (mm):
| d (ID) | D (OD) | B (Width) | C (Race Width) |
|---|---|---|---|
| 80 | 120 | 55 | 45 |
💡 Why use double-sealed spherical plain bearings in heavy equipment?
Double seals keep grease in and contaminants out - extending service life in dirty or wet conditions. Combined with a spherical race, these bearings allow smooth pivoting under heavy axial and radial loads.
Tough, sealed, and ready to pivot - drop the GE80ES-2RS into your build and keep things moving with rock-solid support!
