SBB56-2RS Spherical Plain Bearing - 3-35/64" x 5-1/2" x 3-1/16" - Sealed

SBB56-2RS Spherical Plain Bearing - Double Sealed
✔️ 3-35/64" x 5-1/2" x 3-1/16" - One Bearing

The SBB56-2RS is a heavy-duty spherical plain bearing designed to handle high radial loads and misalignment. Constructed from chrome steel and sealed on both sides, it's ideal for tough industrial environments requiring sealed performance and long service life.

✅ Inner diameter: 3-35/64 inches
✅ Outer diameter: 5-1/2 inches
✅ Width: 3-1/16 inches
✅ Made from chrome steel for strength and durability
✅ Double rubber seals (2RS) for protection against dust and moisture
✅ Dynamic load rating: 680 kN
✅ Static load rating: 2,040 kN
✅ Great for pivot joints, linkages, and oscillating motion systems
✅ Sold as one bearing

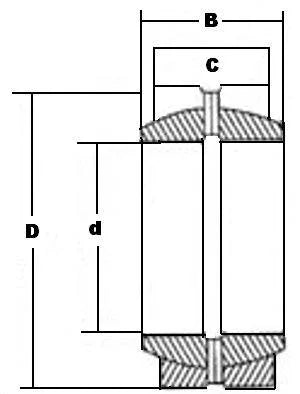

Dimensions (Inches):
✅ d: 3-35/64"
✅ D: 5-1/2"
✅ B: 3-1/16"
✅ C: 2-5/8"

💡 Why choose sealed spherical plain bearings like the SBB56-2RS?
Sealed spherical plain bearings reduce the need for maintenance by keeping lubrication in and contaminants out. Their design supports heavy-duty motion while handling angular misalignment - ideal for rugged mechanical and structural systems.

Built to perform under pressure in tough, high-load conditions.
