4 Male Rod End 12mm POS12 2 Right & 2 Left Hand Bearing
UPC: 00193019065174
Type: Rod Ends Heim Joints Bearings
Basic Dynamic Load Rating: 1,330 KGF
Basic Static Load Rating: 1,730 KGF
Quantity: Four Bearings

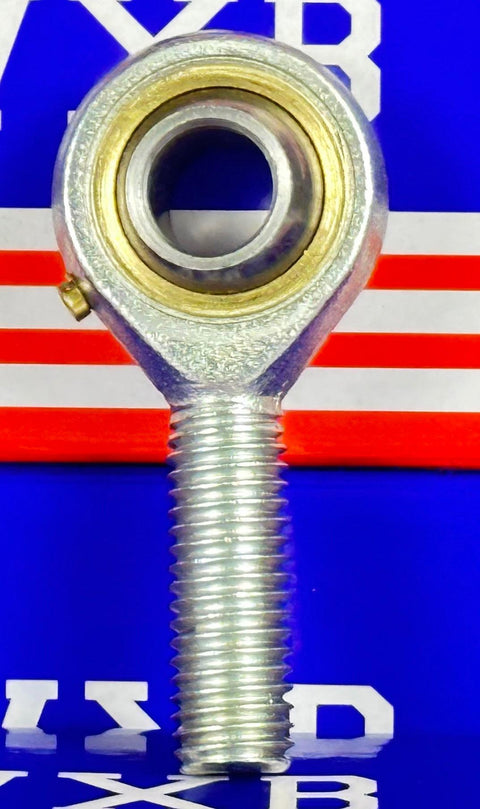

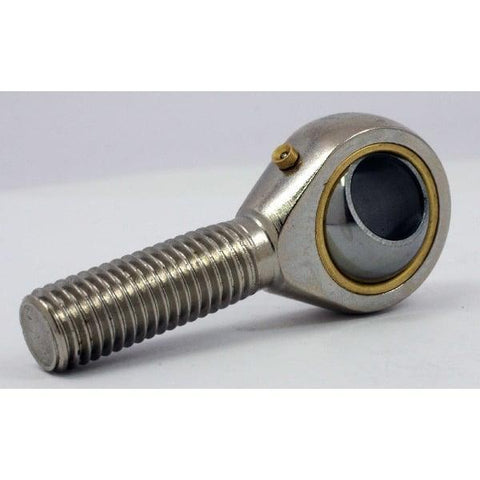

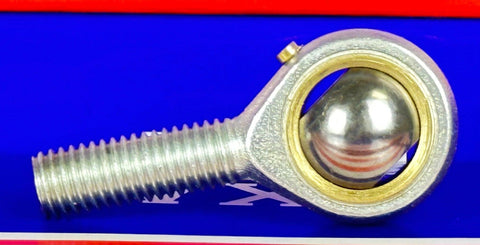

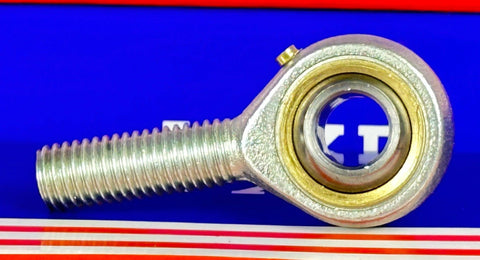

POS-12 Male Rod End Bearings - 12mm ID, M12x1.75 Thread

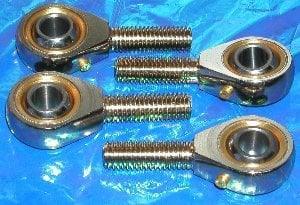

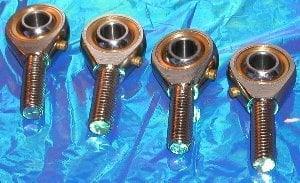

✔️ 4-Pack - Includes 2 Right-Hand + 2 Left-Hand Threaded Bearings
This set includes four POS-12 male rod end bearings designed for 12mm shafts, with two right-hand thread and two left-hand thread pieces. Ideal for steering linkages, suspension setups, and any application where fine adjustment and strong pivoting movement are needed.
✅ Inner diameter (bore): 12mm
✅ Thread size: M12 x 1.75
✅ Quantity: 4 bearings (2 RH + 2 LH)
✅ Type: Male rod end (heim joint)
✅ Material: Steel housing with spherical insert
✅ Pack includes both thread orientations for balanced assemblies

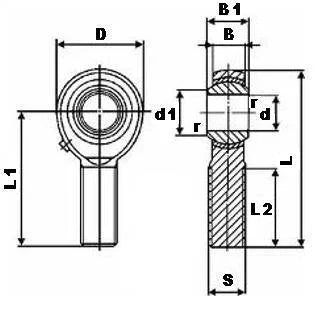

Dimensions:
| d (ID) | Thread | S | D | B | B1 | d1 | L | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| 12mm | M12x1.75 | 30 | 12 | 16 | 15.4 | 69 | 54 | 33 |
✅ Basic dynamic load rating: 1,330 kgf
✅ Basic static load rating: 1,730 kgf
✅ Cross-reference equivalents:
- ELGES: GAKFR 12 PB
- IKO: POS 12
- HIRSCHMANN: SM 12
- Equal: SAKAC 12 M
💡 Why use both right and left-hand rod ends in mechanical assemblies?
Using both thread directions allows you to adjust linkage length without removing the ends - just rotate the center link. This saves time and maintains tension, ideal for tight setups in motorsports, automation, and precision machinery.
