Female Rod End 10mm PHS10L Left hand Bearing


$28.54 CAD $38.52 CADyou save $9.98 CAD
SKU: Kit21226
UPC: 00193019051757
Item: PHS10L Bearings
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 9807 N
Static load Capacity: 13337 N

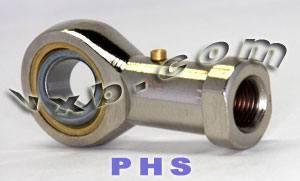

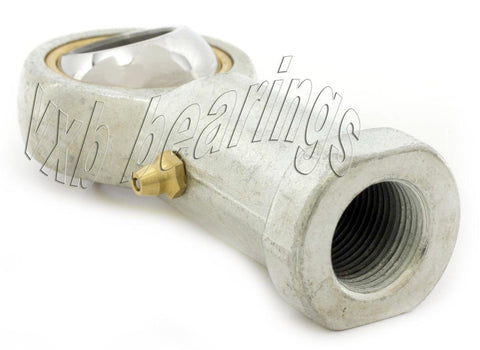

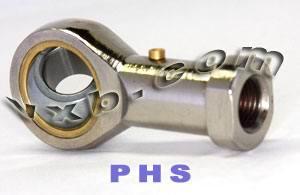

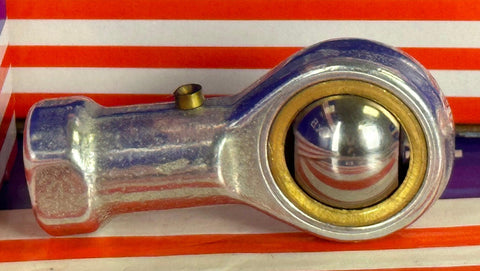

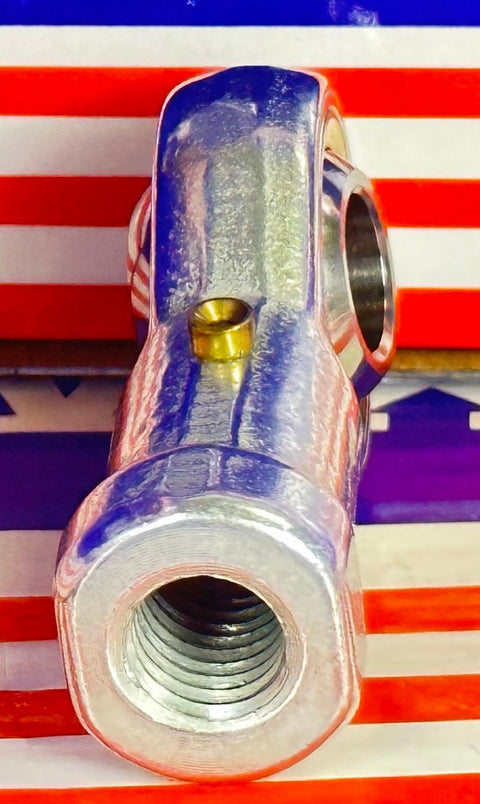

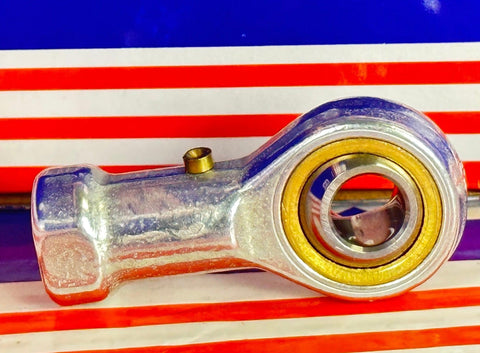

PHS10L Female Rod End
One left Hand


PHS10L left Hand Female Rod End Works with 10mm Shafts, Bearing inner diameter is 10mm, the internal thread size is M10x1.5, Cross-reference part numbers:

  • PHS10L Bearings
  • Rod Ends Heim Joints Bearing
  • Quantity: 1 Bearing
  • Dynamic load Capacity: 9807 N
  • Static load Capacity: 13337 N

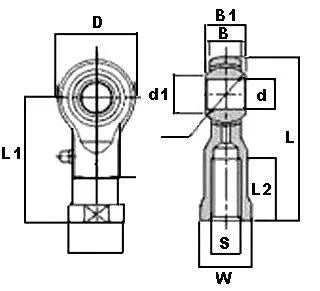

Dimensions (mm)
d Thread
S
D B B1 d1 L L1 L2 W
10 M10x1.5 26 10.5 14 12.9 56 43 21 17
