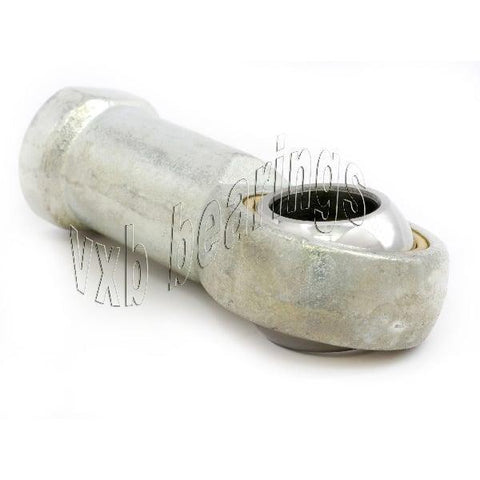

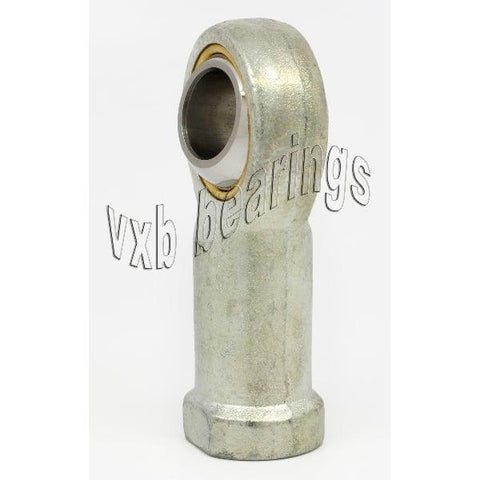

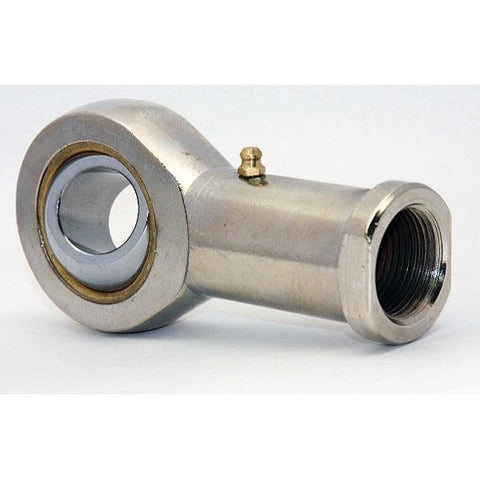

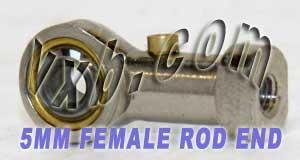

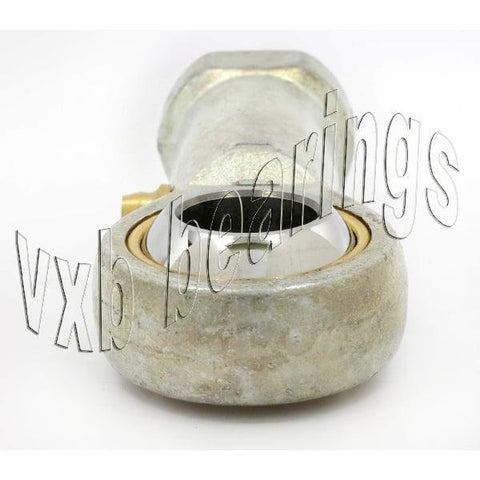

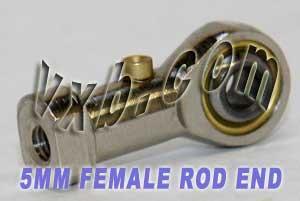

Female Rod End 5mm PHS5 Right hand Bearing Joint
UPC: 00193019073193
Type: Rod Ends Heim Joints Bearing
Quantity: One Bearing
Dynamic load Capacity: 330 KGF
Static load Capacity: 580 KGF
PHS-5 Female Rod End - Right Hand Thread
✔️ M5x0.8 Thread - 5mm Bore - For 5mm Shafts
This PHS-5 female rod end bearing is designed for right-hand threaded applications using 5mm shafts. With a strong internal thread (M5x0.8) and a precision housing, it offers reliable movement in control arms, linkages, and light mechanical assemblies. Great for robotics, RC, and automation builds needing angular motion control.
✅ Pack of 1 rod end
✅ Inner diameter (bore): 5mm
✅ Thread type: Right-hand M5x0.8
✅ Dynamic load capacity: 330 kgf
✅ Static load capacity: 580 kgf
✅ Durable steel body with smooth spherical joint
✅ Used in linkages, hobby builds, and light machinery

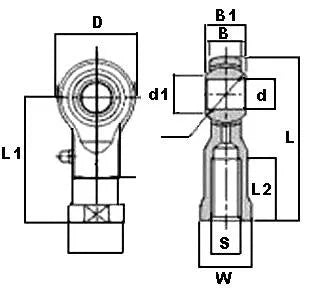

Dimensions Table (mm):
| Spec | Value |
|---|---|
| d | 5 |
| Thread | M5x0.8 |
| S | 16 |
| D | 6 |
| B | 8 |
| B1 | 7.7 |
| d1 | 35 |
| L | 27 |
| L1 | 14 |
| L2 | 9 |
☑️ IKO: PHS5
☑️ ELGES: GIKFR 5 PB
☑️ SIKAC 5 M
☑️ HIRSCHMANN: SF 5
💡 What are female rod end bearings used for in mechanical linkages?
They allow flexible pivot motion while maintaining connection strength.
-
Designed for oscillating, pivoting, or angular movement
-
Easy to thread into control arms or tensioning rods
-
Ideal for tight-space motion control
-
Common in hobby builds, actuators, and steering systems
Get the flexibility your project needs, grab the PHS-5 and keep your motion smooth and secure.
