POS3 Male Rod End 3mm Right Hand Joint - Miniature

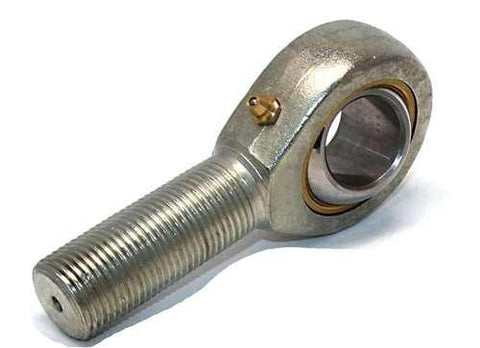

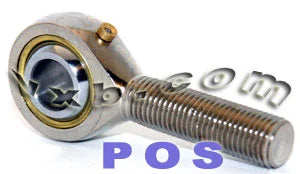

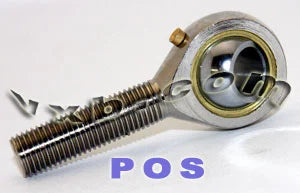

POS-3 Miniature Male Rod End - Right Hand
✔️ 3mm Bore - M3x0.5 Thread, One Heim Joint

The POS-3 is a precision miniature male rod end with a right-hand thread, ideal for use with 3mm shafts. Commonly used in robotics, RC linkages, and small mechanical assemblies, it offers smooth articulation and reliable motion control. Compatible with IKO POS 3 standards.

✅ Inner diameter (bore): 3mm
✅ Thread type: M3 x 0.5 (Right Hand)
✅ Type: Heim joint rod end bearing
✅ Dynamic load rating: 170 KGF
✅ Static load rating: 190 KGF
✅ Interchangeable with: IKO POS 3
✅ Quantity: 1 bearing

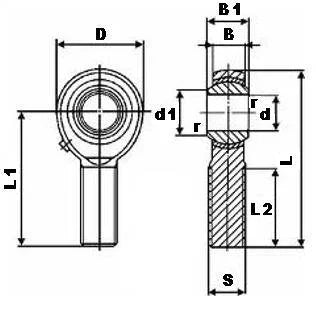

📏 Dimensions Table (Metric):

💡 What’s the difference between right-hand and left-hand rod ends?
Right-hand rod ends thread in the standard clockwise direction, while left-hand ones go counterclockwise. Using both allows quick adjustment of linkages without disassembly.

Perfect for compact, fine-tuned assemblies where motion control and adjustability are essential.
