POS3L Male Rod End 3mm Left Hand Joint - Miniature

POS3L Miniature Male Rod End - Left Hand
✔️ 3mm Bore - M3x0.5 Thread, One Heim Joint

The POS3L is a miniature male rod end designed for 3mm shafts with a left-hand thread. Compact and precise, this joint is perfect for small-scale linkages in robotics, RC builds, and precision mechanical systems. It features a high-strength spherical bearing and is interchangeable with IKO POS 3L.

✅ Inner diameter (bore): 3mm
✅ Thread type: M3 x 0.5 (Left Hand)
✅ Type: Heim joint rod end bearing
✅ Dynamic load rating: 170 KGF
✅ Static load rating: 190 KGF
✅ Interchangeable with: IKO POS 3
✅ Quantity: 1 bearing

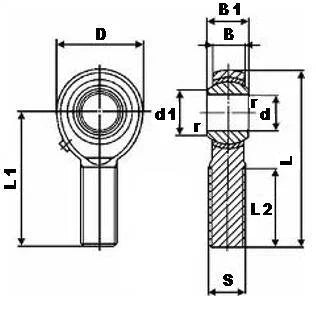

📏 Dimensions Table (Metric):

💡 When should you use a left-hand rod end bearing?
Left-hand rod ends are used when you need opposite-threaded ends for fine-tuning linkage tension or rotational control without disassembly - ideal for adjustable or precision setups.

Perfect for tight mechanical spaces where smooth articulation and compact control matter.
