SQZ12-1 Straight Shape Ball Joint Rod End Bearing
SQZ12-1 Straight Shape Ball Joint Rod End Bearing
VXB

SQZ12-1 Straight Shape Ball Joint Rod End Bearing


$28.54 CAD $38.52 CADyou save $9.98 CAD
SKU: SQZ12-1
UPC: 00193019326954

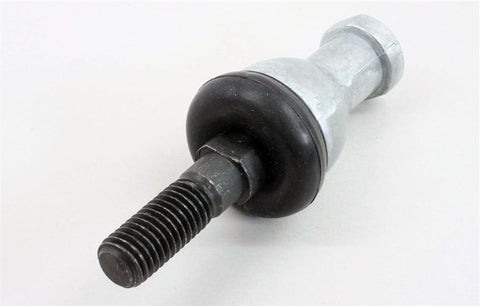

Straight Shape Ball joint Rod end bearing
SQZ12-1

Straight Shape Ball joint Rod end bearing SQZ12-1 The Rod End is a spherical slide bearing incorporating a spherical inner ring with precision and hardness equivalent to that of steel ball bearings. It provides very smooth rotating and oscillating motion without play.

  • SQZ12-1-1(Ball joint rod ends) Bearing
  • Male and female Ends
  • Quantity: 1 Bearing
  • Lubrication: Grease:
  • Inside Diameter:12 mm
  • Outside Diameter:d1= 32 mm
  • Thickness:L= 91 mm
  • Load rating: 11

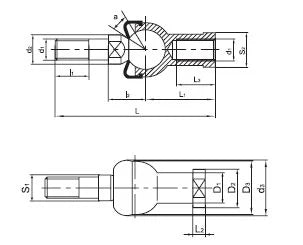

Type d d1 d2
min 		d3
max 		l1
min 		l2 S1 L
max 		L1 L2
max 		L3
min 		D1
max 		D2
max 		D3
max 		S2 a
SQZ
12-1		 12 M12X1.75 17 32 24 21 15 91 40 6.5 20 17.5 22 32 19 15
