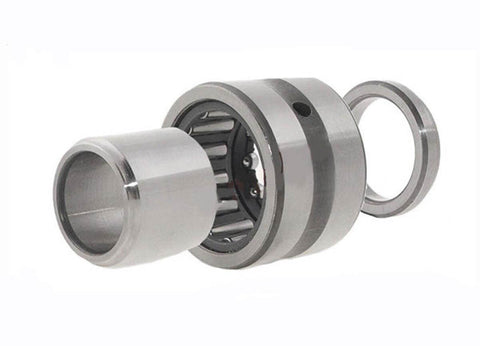

NKJB5904 Needle Roller Bearing & Ball Bearing 20x37x25mm Machined Type

NKJB5904 Needle Roller Bearing
✔️ Combined with Angular Contact - 20mm x 37mm x 25mm

The NKJB5904 is a heavy-duty combined bearing that pairs a needle roller with a 3-point angular contact thrust bearing. Built to manage both radial and axial loads, it’s perfect for space-saving designs in gearboxes, transmissions, and power drives.

✅ Pack size: 1 bearing
✅ Inner diameter: 20mm
✅ Outer diameter: 37mm
✅ Width: 25mm
✅ Type: Combined needle roller with angular contact
✅ Contact width (C): 23mm
✅ Roller width (F): 25mm
✅ Min shaft diameter (da): 22mm
✅ Max housing diameter (Da): 35mm
✅ Fillet radius (r12/ra): 0.3mm
✅ Dynamic load rating (C): 21.6 kN
✅ Static load rating (C0): 28 kN
✅ Brand: VXB Bearing

💡 Why choose a combined needle and angular contact bearing for tight mechanical systems?
This bearing design gives you dual load handling power in one compact, high-efficiency unit.

Key advantages:

• Handles axial thrust and radial loads simultaneously

• Saves space by eliminating the need for separate bearings

• Ideal for rotating shafts under mixed load conditions

• Reliable performance in automotive and industrial assemblies

Smart, compact, and ready to carry the load - get the NKJB5904 today and keep your machinery running strong!
