564534A Conical Roller Bearing 7.75" Bore x 10" Diameter
$2,200.43 CAD
$2,970.57 CADyou save $770.14 CAD
SKU: 564534ACONICALROLLE
UPC: 00193019148648
BEARING 564534 A CONICAL ROLLER
One Bearing |
|
BEARING 564534 A CONICAL ROLLER
- 564534 A CONICAL ROLLER

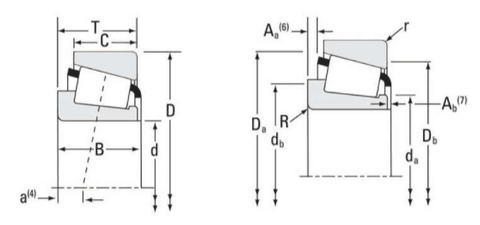

- d - Bore: 196.85mm / 7.75" inch / 7-3/4" inch
- D - Cup Outer Diameter: 254mm / 10.00" Inch
- B - Cone Width: 27.783mm / 1.0938" Inch
- C - Cup Width: 21.433mm / 0.8438" Inch
- R - Cone Backface "To Clear" Radius 1.520mm / 0.06" Inch
- r - Cup Backface "To Clear" Radius 1.52mm / 0.06" Inch
- da - Cone Frontface Backing Diameter 208.03mm / 9.13" Inch
- db - Cone Backface Backing Diameter 210.06mm /8.27" Inch
- Da - Cup Frontface Backing Diameter 246.90mm / 9.80" Inch
- Db - Cup Backface Backing Diameter 243.08mm / 9.57" Inch
- Ab - Cage Cone Frontface Clearance 2.5mm / 0.1" Inch
- Aa - Cage Cone Backface Clearance 2mm / 0.08" Inch
- a - Effective Center Location 14.2mm / 0.56" Inch
|
