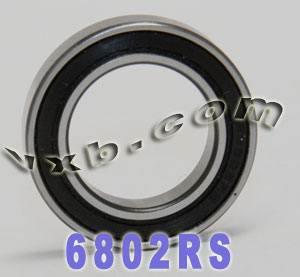

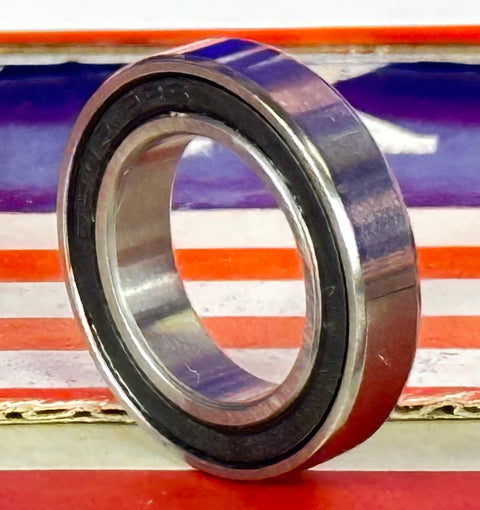

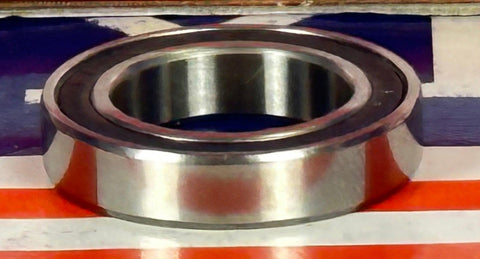

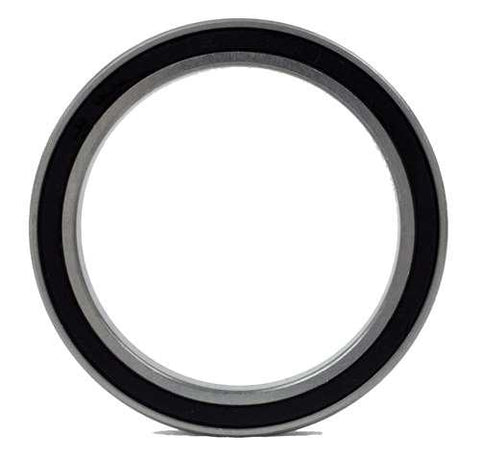

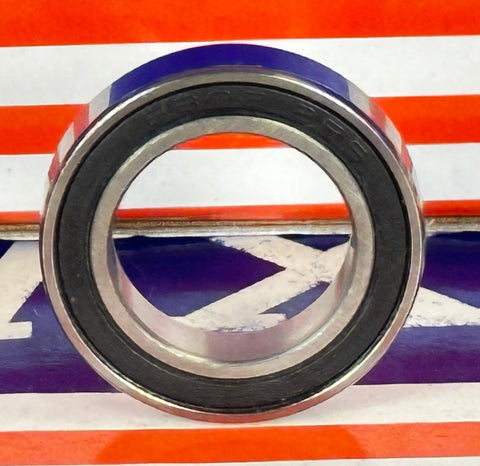

6802RS Bearing 15x24x5mm - Sealed

6802RS Bearing - Sealed Ball Bearing - Chrome Steel
✔️ 15mm x 24mm x 5mm - Double Rubber Seals, High-Speed

The 6802RS Bearing is a slim-profile deep groove radial ball bearing made from durable 52100 chrome steel. Designed to electric motor quality standards, it features double rubber seals for protection against dust and debris, making it ideal for high-speed precision systems like electric motors, hubs, and compact assemblies.

✅ Size: 15mm ID x 24mm OD x 5mm width
✅ Type: Deep groove radial ball bearing
✅ Material: 52100 chrome steel (races and balls)
✅ Cage: Steel
✅ Closures: Double rubber seals (RS/RS1/2RS1)
✅ Radial clearance: C0 (standard)
✅ Quality: EMQ - electric motor grade
✅ Lubrication: Pre-lubricated with grease
✅ Dynamic load rating Cr: 2,080 N
✅ Static load rating Cor: 1,260 N
✅ Max speed (grease): 17,000 RPM
✅ Quantity: 1 bearing
✅ Equivalents: 6802-2RS1, 6802-2RZ, 61802RS1

💡 How does reduced cross-sectional height affect bearing rigidity in the 6802 series?
Thin-section bearings like the 6802RS Bearing reduce weight and radial space but can introduce flexibility under load. Proper housing support and controlled fit tolerances are critical to maintain rigidity and ensure consistent performance in compact, high-speed environments.
